Pitching Stopper

Install the pitching stopper bracket.
NOTE: Tighten the bolt side while holding the nut side.

Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

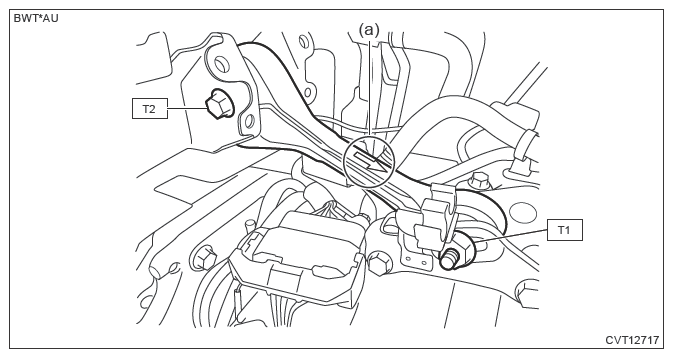

Install the pitching stopper.
NOTE: Install with the front mark (a) facing towards the front of the vehicle.

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 1: Pitching Stopper Bolt And Nut Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

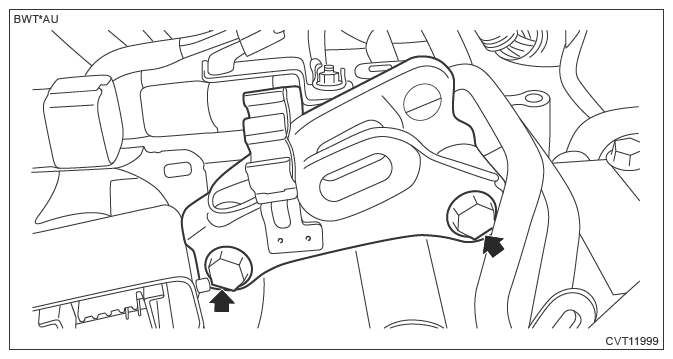

Install the pitching stopper plate.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Connect the ground cord.
1. Connect the coupling connector.
2. Install the clips.
Connect the air breather hose to the clip.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>INSTALLATION .
