Front Regulator And Motor Assembly

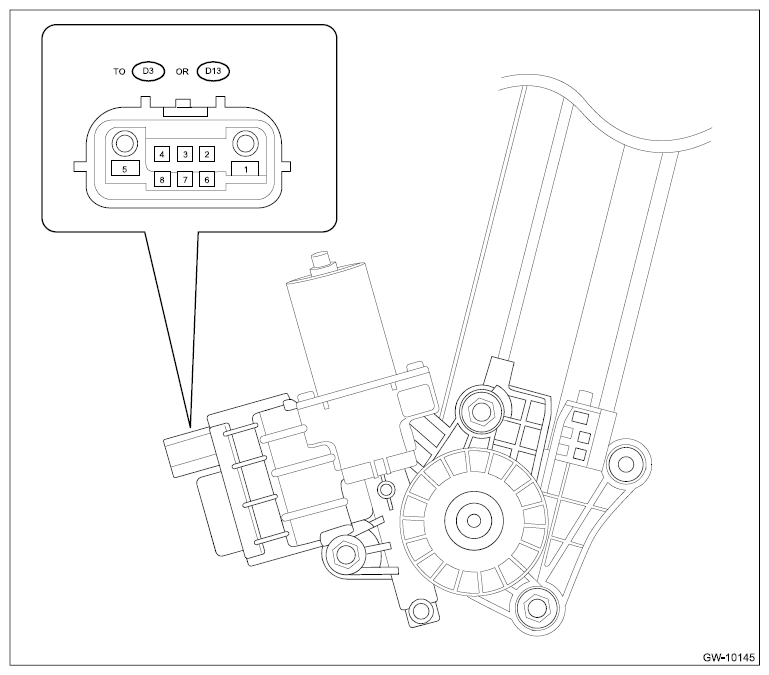

G12400503Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard
(D3) or (D13) No. 1 ←→ Chassis ground GND Always Less than 1 Ω
(D3) or (D13) No. 2 - - -
(D13) No. 3 ←→ Chassis ground SW assembly PW SUB LED output (Passenger's side only) Power window switch LED light: ON Battery voltage
Power window switch LED light: OFF 10 μA or less
(D13) No. 4 SW assembly PW AUTO operation input (Passenger's side only) Power window switch AUTO: ON 1.0 V or less
Power window switch AUTO: OFF Battery voltage
(D3) or (D13) No. 5 ←→ Chassis ground Regulator and motor assembly power supply Always Battery voltage
(D3) or (D13) No. 6 ←→ Chassis ground SW assembly PW DOWN operation input Power window switch DOWN: ON 1.0 V or less
Power window switch DOWN: OFF Battery voltage
(D3) or (D13) No. 7 UP AND DOWN LIN signal input - -
(D3) or (D13) No. 8 ←→ Chassis ground SW assembly PW UP operation input Power window switch UP: ON 1.0 V or less
Power window switch UP: OFF Battery voltage
