Stay Assembly - Front Hood

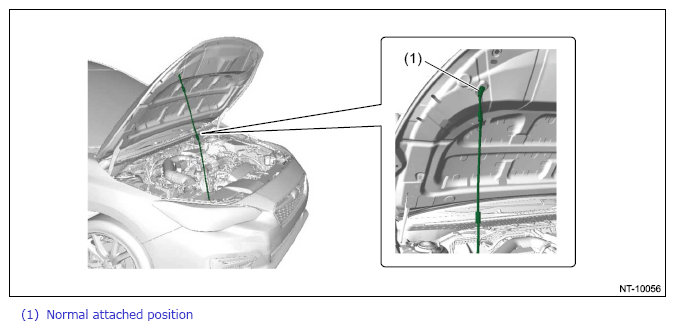

- Always attach the stay to the normal position when performing works such as inspections and general maintenance.CAUTION:
- During the inspection and general maintenance, always be sure to turn the ignition switch to OFF.
- At the inspection and general maintenance, do not detach the stay.

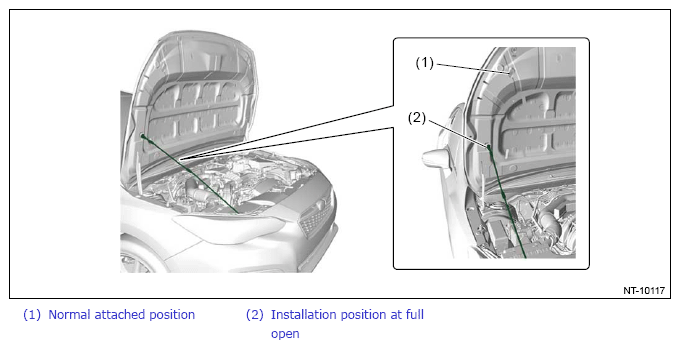

- When wider front hood opening is necessary, set the stay mounting position (hood side) to the lower position (hinge COMPL - front hood section) as shown in the figure.
