CROSSTREK Hybrid Model

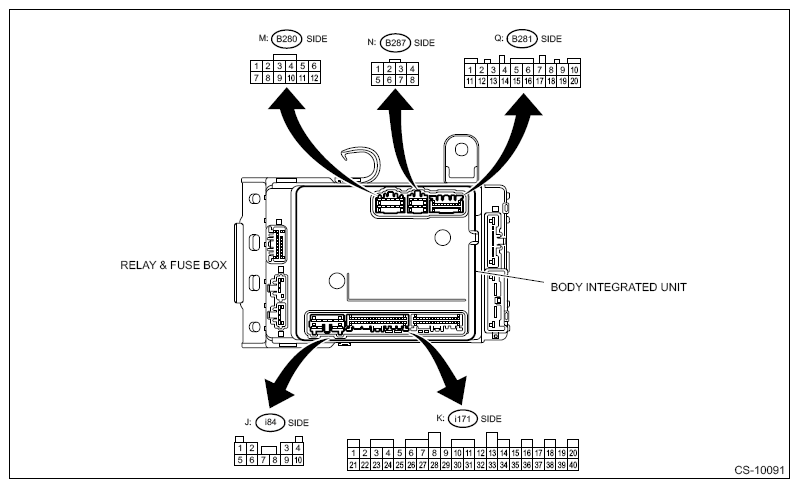

G11255285Courtesy of SUBARU OF AMERICA, INC.
Item Connector No. Terminal No. Input/Output signal
Measured value and measuring conditions
Battery power supply B280 1 9 - 16 V
B287 4
Hybrid vehicle control ECU assembly ("P" range) B281 17 Pulse signal (CAN communication)
B281 19
Stop light switch B281 16 9 - 16 V when stop light switch is ON
1 V when stop light switch is OFF
"P" range switch i171 40 Less than 1 V when select lever is in "P" range
      9 - 16 V when select lever is in other positions than "P" range
Solenoid unit output i84 3 9 - 16 V when shift lock is released.
Less than 1 V when shift lock is operating.
Ground i84 4 Less than 1 V
B287 1
