5MT Model
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.
- Remove the gear shift knob by turning it counterclockwise.
- Remove the front console panel. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL
.
- Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL
.
- Remove the clamp.
 Courtesy of SUBARU OF AMERICA, INC.
|

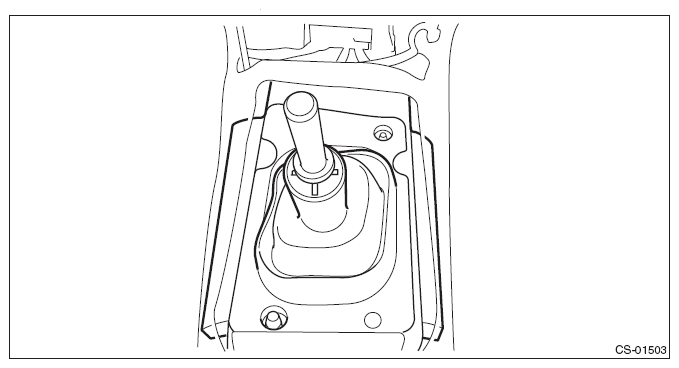

- Remove the boot and insulator assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|

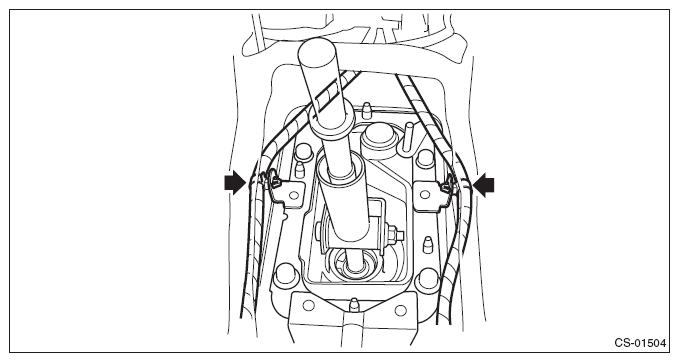

- Remove the harness clamp from the plate COMPL.
 Courtesy of SUBARU OF AMERICA, INC.
|

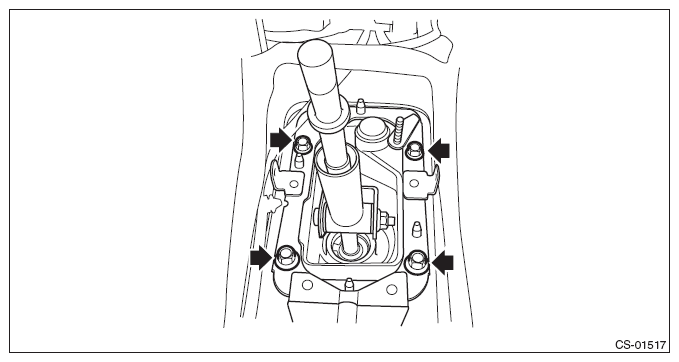

- Remove the plate COMPL from the vehicle body.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Lift up the vehicle.
- Remove the center exhaust cover.
 Courtesy of SUBARU OF AMERICA, INC.
|

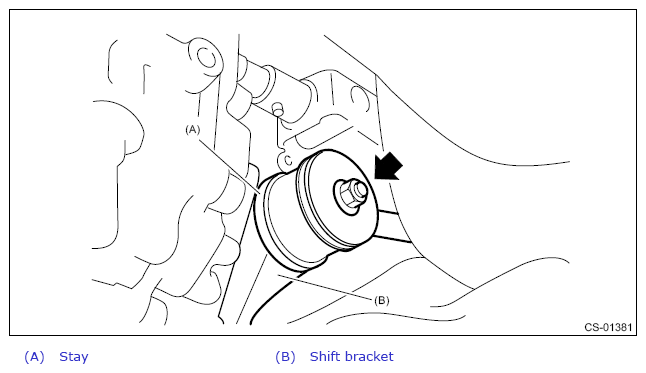

- Remove the stay from the shift bracket.
 Courtesy of SUBARU OF AMERICA, INC.
|

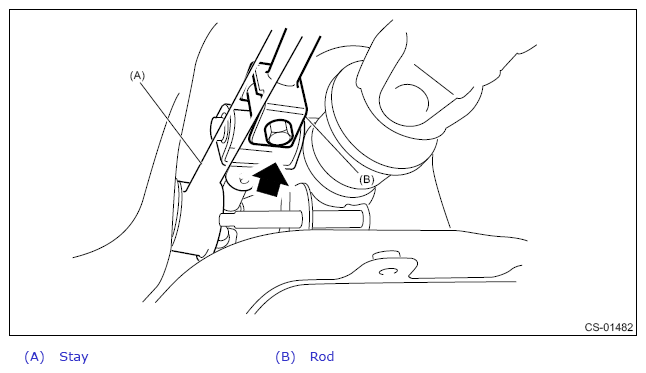

- Remove the rod from joint.
 Courtesy of SUBARU OF AMERICA, INC.
|

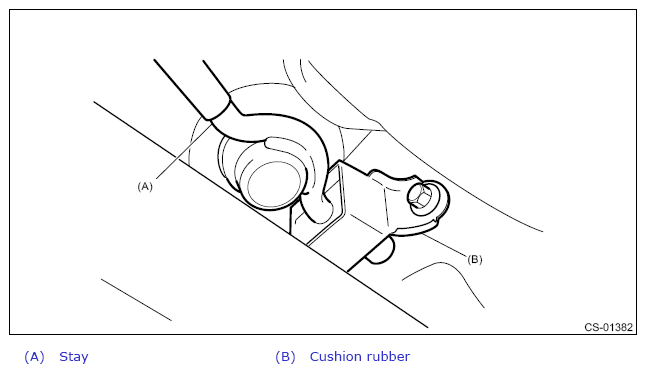

- Remove the cushion rubber from the vehicle body.
 Courtesy of SUBARU OF AMERICA, INC.
|

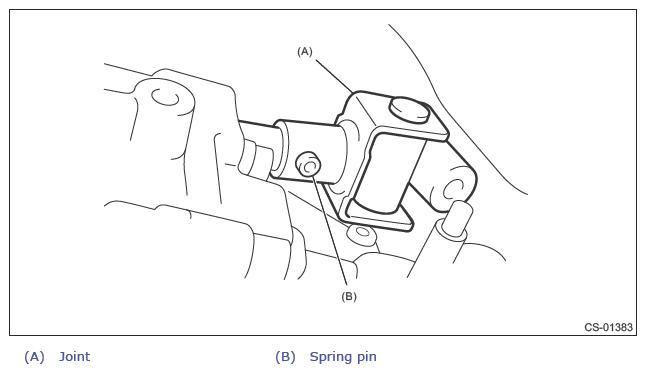

- Extract the spring pin and remove the joint.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the gear shift lever from the bottom of the vehicle.
