Select Cable: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY
.
NOTE:
For the hybrid model, disconnect the battery negative terminal.
- Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Lift up the vehicle.

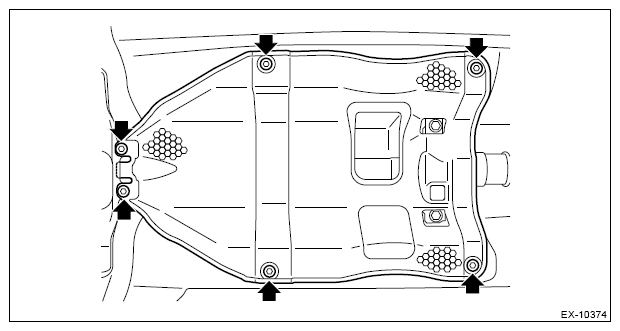

- Remove the center exhaust cover.
- Except for Crosstrek hybrid model
 Courtesy of SUBARU OF AMERICA, INC.
|

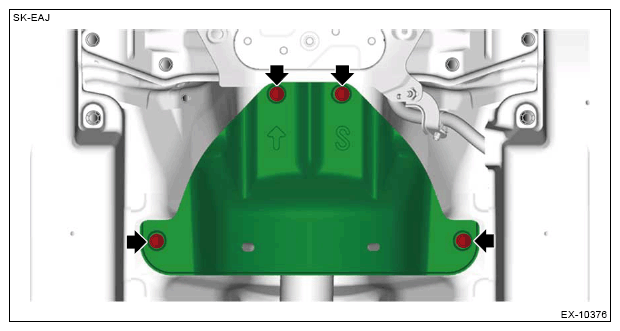

- Crosstrek hybrid model
 Courtesy of SUBARU OF AMERICA, INC.
|

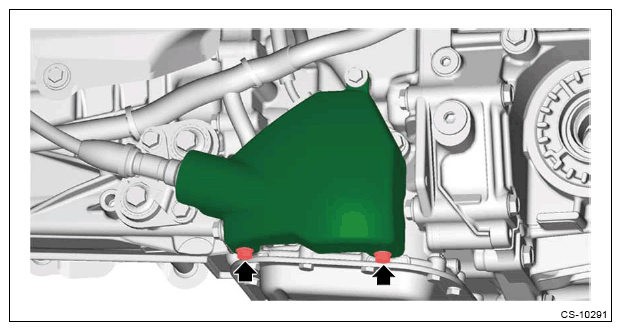

- Remove the inhibitor cover. (Crosstrek hybrid model)
 Courtesy of SUBARU OF AMERICA, INC.
|
- Disconnect the select cable from the transmission main body.
CAUTION:
Do not apply excessive load while holding the part (a).
 Courtesy of SUBARU OF AMERICA, INC.
|
- Except for Crosstrek hybrid model
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|

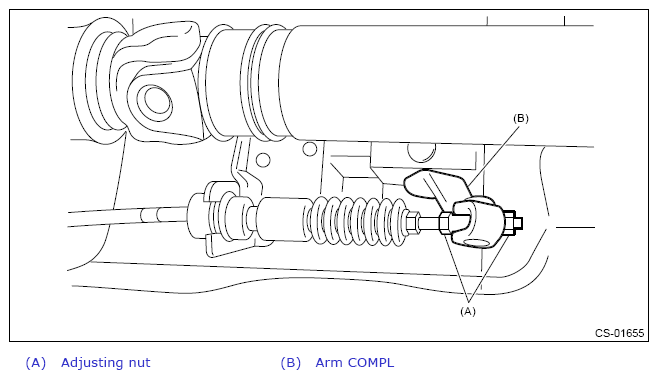

- Disconnect the cable from arm COMPL.
CAUTION:
Do not apply excessive load while holding the part (a).
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|

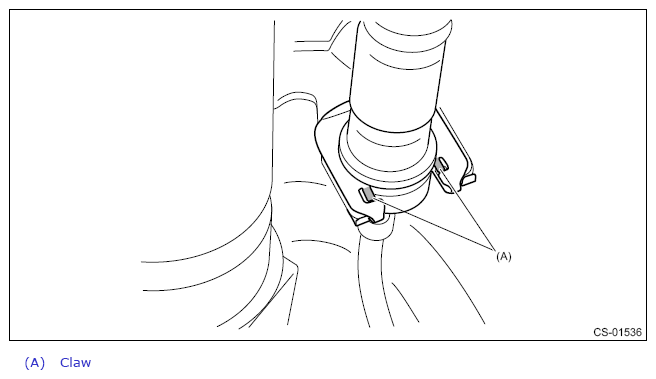

- Raise the claw of clamp to remove the cable from bracket.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the select cable from the cable plate.
