Intake Side

RH SIDE
1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>REMOVAL .

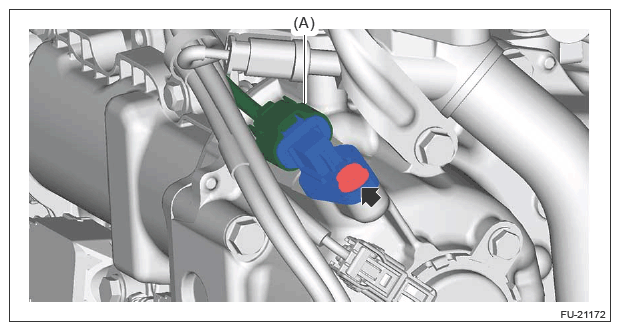

3. Disconnect the connector (A) and remove the camshaft position sensor.
Courtesy of SUBARU OF AMERICA, INC.
LH SIDE

Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

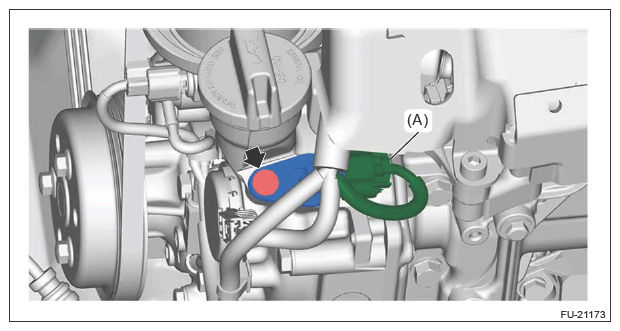

Disconnect the connector (A) and remove the camshaft position sensor.

Courtesy of SUBARU OF AMERICA, INC.
