Circulate Tube Assy: Installation

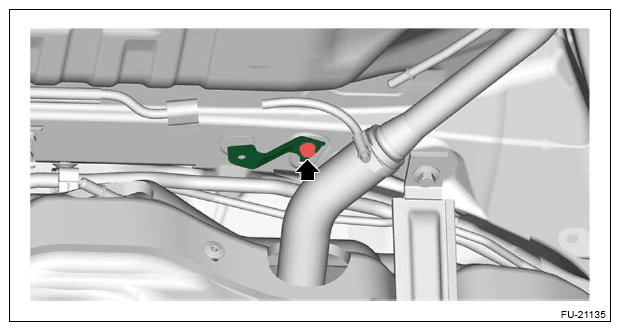

  1. Attach the bracket.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

    G13231012Courtesy of SUBARU OF AMERICA, INC.

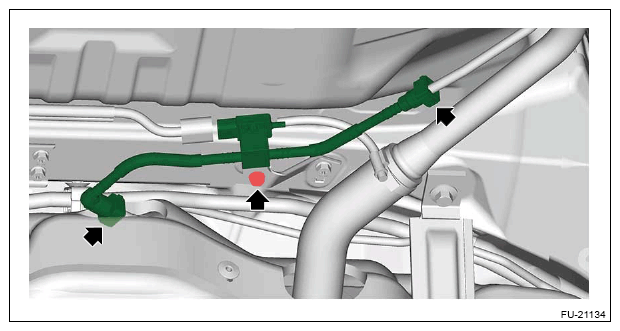

  2. Connect the circulate tube assembly to the fuel tank and fuel filler pipe, and install the circulate tube assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO(HEV))>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

    G13231011Courtesy of SUBARU OF AMERICA, INC.

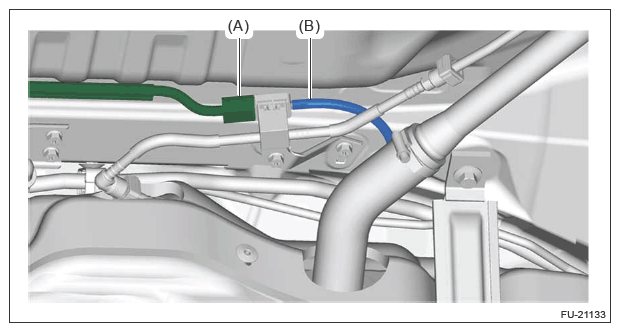

  3. Connect the connector (A) and air hose (B).
    G13231010Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
