Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.

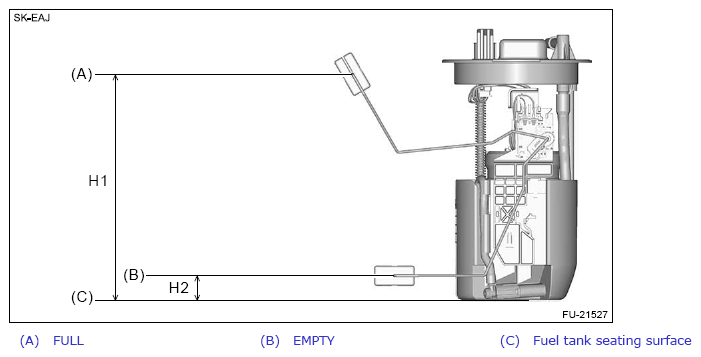

- Measure the fuel level sensor float position.
NOTE:
When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Float position |
Standard |
| FULL - Fuel tank seating surface H1 |
205.9±5.0 mm (8.106±0.197 in) |
| EMPTY - Fuel tank seating surface H2 |
20.9±5.0 mm (0.823±0.197 in) |

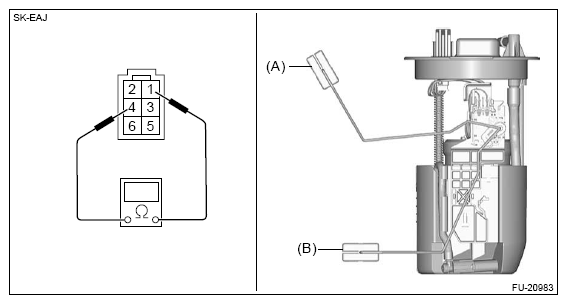

- Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Float position |
Terminal No. |
Standard |
| FULL (A) |
1 and 4 |
17.4±2.0 Ω |
| EMPTY (B) |
410.0±4.5 Ω |
