RH Side

  1. Install the knock sensor and connect the harness.
    NOTE:

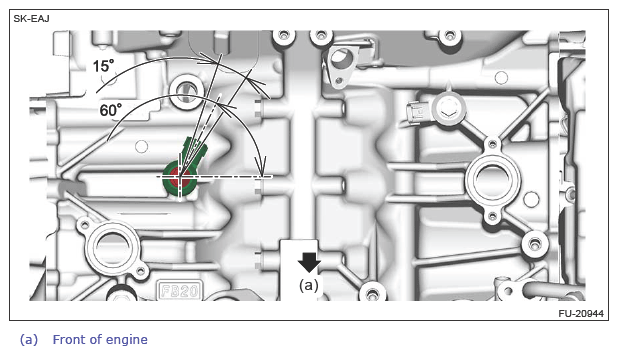

    • Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
    • Make sure that the knock sensor and its connector do not touch the adjacent parts.

    Tightening torque:

    24 N.m (2.4 kgf-m, 17.7 ft-lb)

    G13934231Courtesy of SUBARU OF AMERICA, INC.
  2. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE BOOT>INSTALLATION .
  3. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
