Select Cable: Installation

CAUTION:

Courtesy of SUBARU OF AMERICA, INC.

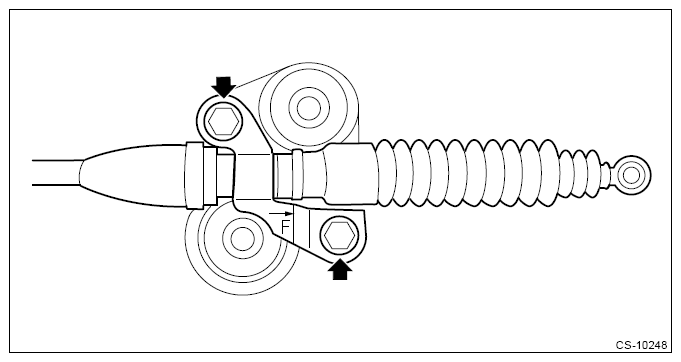

Install the select cable to cable plate.
CAUTION: Be careful not to twist the boot.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Set a new clamp on the select lever and secure it by bending the claw.
NOTE: Set so that the claw faces toward the rear side.

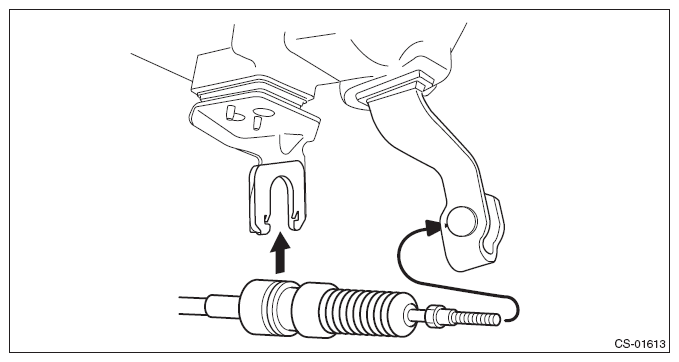

Insert the select cable into the select lever and secure it with the clamp.

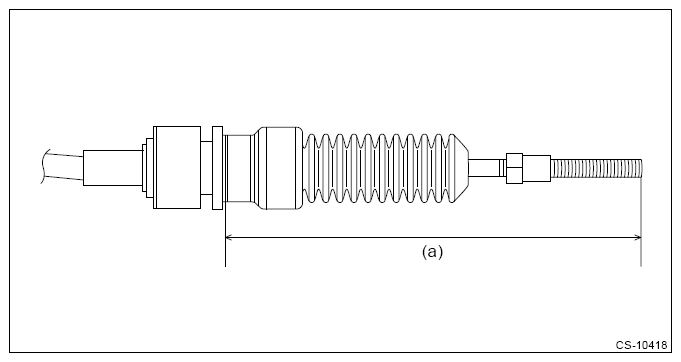

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Temporarily Install the adjusting nut to the select cable.
Connect the select cable to the transmission main body.

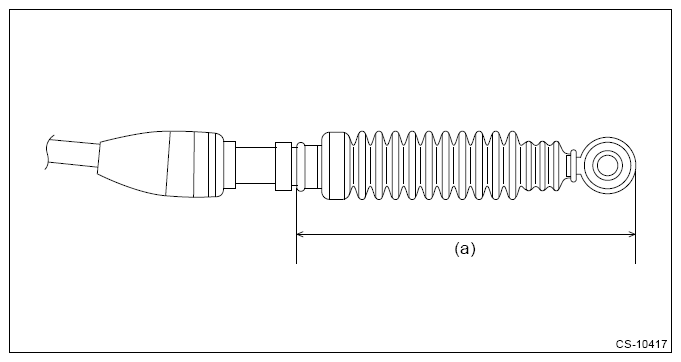

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Set the washer before installing the snap pin.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

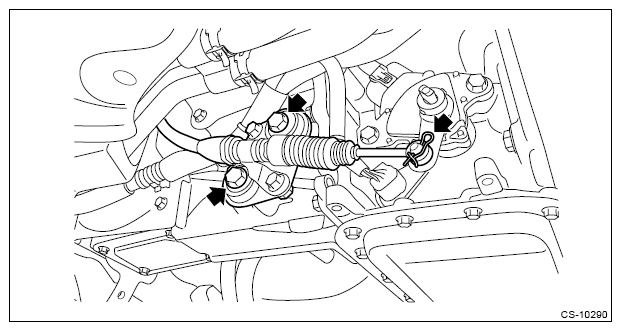

- Except for Crosstrek hybrid model
Courtesy of SUBARU OF AMERICA, INC.

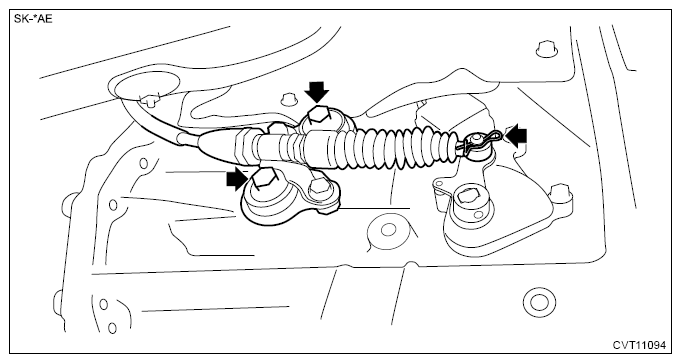

- Crosstrek hybrid model
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. Ref. to CONTROL SYSTEMS>SELECT CABLE>ADJUSTMENT .

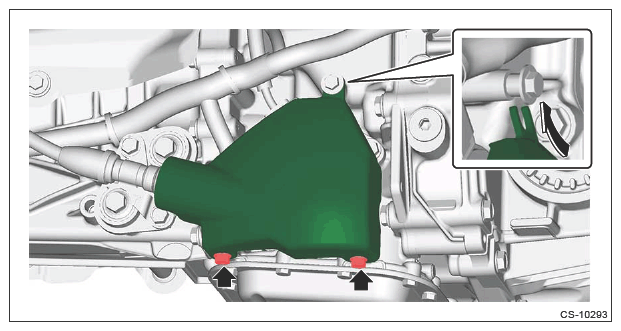

Install the inhibitor cover. (Crosstrek hybrid model)
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Lower the vehicle.
Shift the select lever to "P range".
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

NOTE: For the hybrid model, connect the battery negative terminal.
