Entertainment System: Audio: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  3. Remove the panel center UPR.

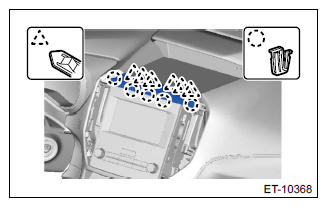

    1. Release the clips and claws, then detach the panel center UPR.
    G11246744Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the audio assembly.

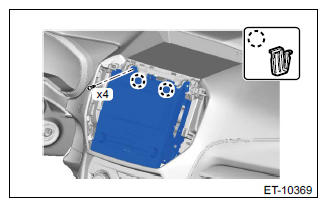

    1. Remove the screws.
    2. Release the clips and disconnect the connector, and then remove the audio assembly.
    G11246745Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the data communication module. (Model with telematics) Ref. to ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>REMOVAL>DATA COMMUNICATION MODULE .
  6. Remove the audio bracket.

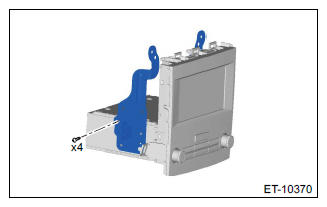

    1. Remove the screws, and then remove the audio bracket.
    G11246746Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the screws on RH side in the same procedure as on the LH side.
