Ball Joint: Inspection

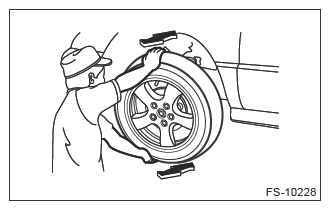

- Check that there is no looseness by moving the upper and lower portions of front tire in an axial direction with the brake pedal depressed.
- Looseness exists → Replace the ball joint COMPL. Ref. to FRONT SUSPENSION>BALL JOINT .
- Check that there is no looseness by moving the upper and lower portions of front tire in an axial direction with the brake pedal released.
- Looseness exists → Check the front hub unit bearing. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT HUB UNIT BEARING>INSPECTION .
- Replace the ball joint COMPL if the boot is damaged when visually inspecting the boot.
