Reduction Driven Gear: Assembly

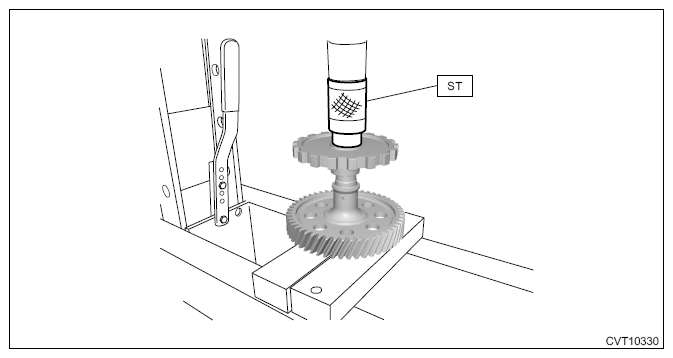

Using the ST and a press, press-fit the parking gear.
NOTE: Apply CVTF to the press-fitting surface of the parking gear.

Preparation tool:

ST: INSTALLER (499757002)

Courtesy of SUBARU OF AMERICA, INC.

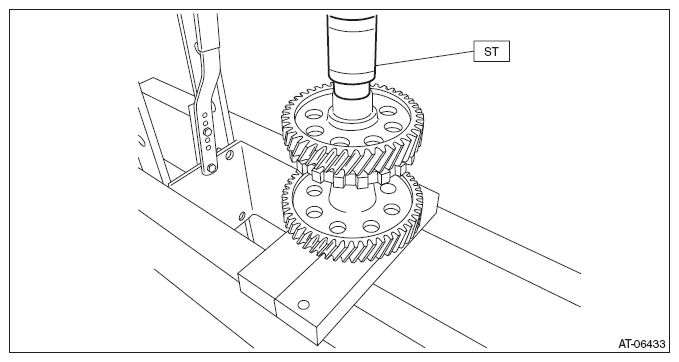

Using the ST and a press, press-fit the transfer drive gear.
NOTE: Apply CVTF to the press-fitting surface of the transfer drive gear.

Preparation tool:

ST: INSTALLER (499757002)

Courtesy of SUBARU OF AMERICA, INC.

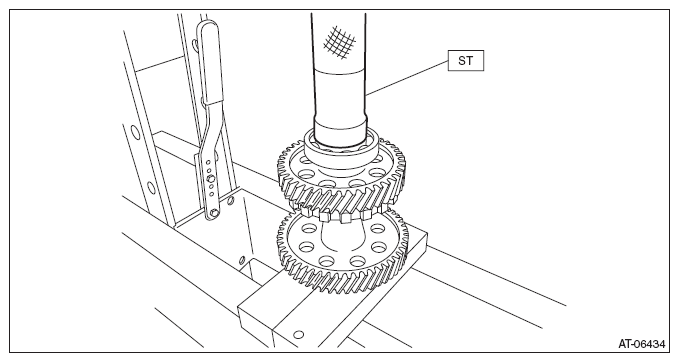

Using the ST and a press, press-fit a new ball bearing.
NOTE: Apply CVTF to the ball bearing.

Preparation tool:

ST: BUSHING 1-2 INSTALLER (499277100)

Courtesy of SUBARU OF AMERICA, INC.

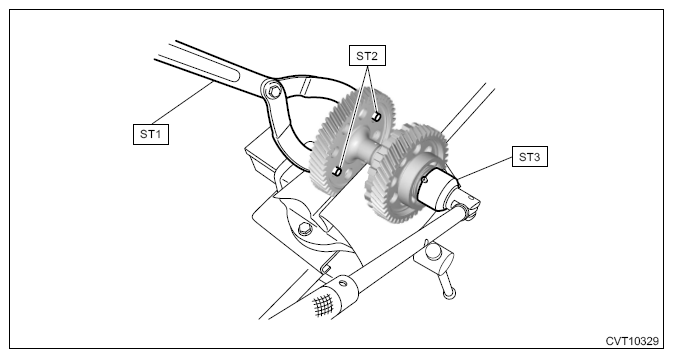

Using the ST1, ST2 and ST3, counter the rotation of the reduction driven gear, and install a new lock nut.
CAUTION: Place cloth between the contacting surface of the vise and the reduction driven gear to prevent reduction driven gear damage.

Preparation tool:

ST1: PULLEY WRENCH (18355AA000)

ST2: PULLEY WRENCH PIN SET (18334AA000)

ST3: SOCKET WRENCH (35) (499987003)

Tightening torque:

95 N.m (9.7 kgf.m, 70.1 ft.b)

Courtesy of SUBARU OF AMERICA, INC.

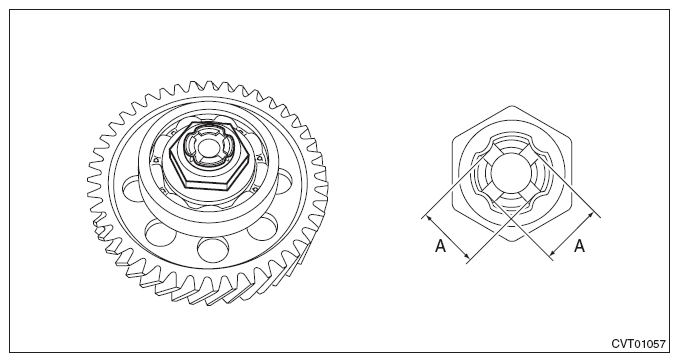

Crimp the lock nut so that the dimension of A becomes 18.9 mm (0.74 in) or less.
CAUTION: Do not allow the lock nut to be cracked during crimping operation.

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.
