Data Communication Module

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  3. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>AUDIO>REMOVAL .
  4. Remove the data communication module.
    1. Disconnect the cable connected to the audio assembly or navigation assembly.
      G13201888Courtesy of SUBARU OF AMERICA, INC.

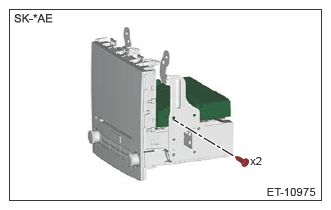

    2. Remove the screws and remove the data communication module.
    CAUTION: Do not drop or apply any impact to the data communication module.
    G13226554Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Remove the screws on LH side in the same procedure as on the RH side.
