DTC P2183: Engine Coolant Temperature Sensor 2 Circuit Range/Performance: Notes

1. -

DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

Trouble symptom:

Coolant temperature rises slowly

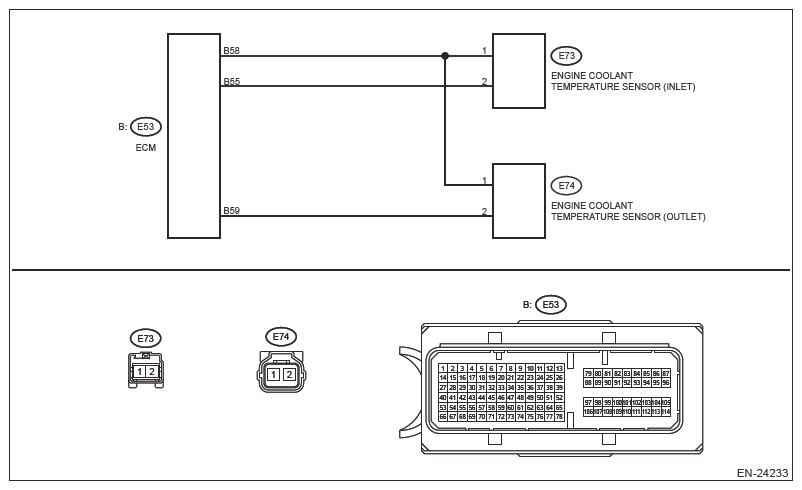

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

G13626834

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK DTC .
1. Turn the ignition switch to ON.
2. Using the Subaru Select Monitor or a general scan tool, read the DTC of [Engine]. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .
  Is DTC other than P2183 displayed? (Current malfunction)

  Yes : Check the appropriate DTC using the "Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

  No : Go to 2 .
CHECK ENGINE COOLANT TEMPERATURE SENSOR (INLET) .
1. Turn the ignition switch to OFF.
2. Disconnect the connectors from the engine coolant temperature sensor (inlet).
3. Measure the resistance between engine coolant temperature sensor (inlet) terminals when the engine is cold and after warmed up.
  Terminals

  No. 1 - No. 2:

  Is the resistance of engine coolant temperature sensor (inlet) different between when engine is cold and after warmed up?

  Yes : Repair the poor contact of ECM connector.

  No : Replace the engine coolant temperature sensor (inlet). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE COOLANT TEMPERATURE SENSOR .
