Battery Cable Assembly: Installation

1. Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw.

   Courtesy of SUBARU OF AMERICA, INC.

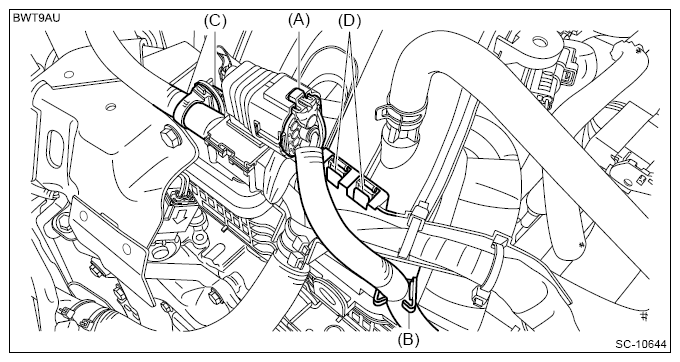

2. Secure the battery cable assembly with the claw (D) and clip (C).
3. Install the engine wiring harness to the clip (B), and connect the connector (A).

   Courtesy of SUBARU OF AMERICA, INC.

4. Secure the battery cable assembly with the clip (A) and clip (B).
5. Connect the connector (C), connector (D), connector (E) and the terminal (F).

   Tightening torque:

   15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

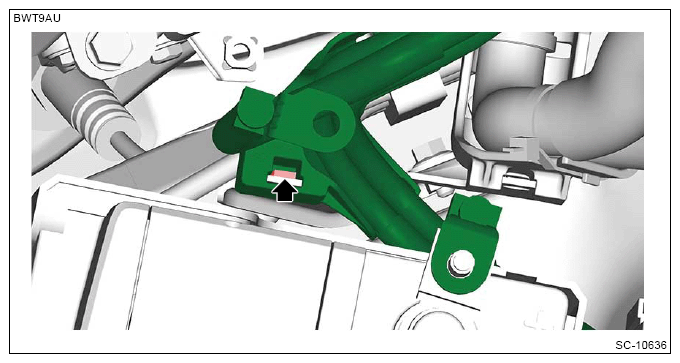

6. Install the V-belt cover.
   NOTE:

   • Check the grommet for peel-off or disengagement.
   • Be careful not to deform the bracket during installation.

   Tightening torque:

   7 N.m (0.7 kgf-m, 5.2 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

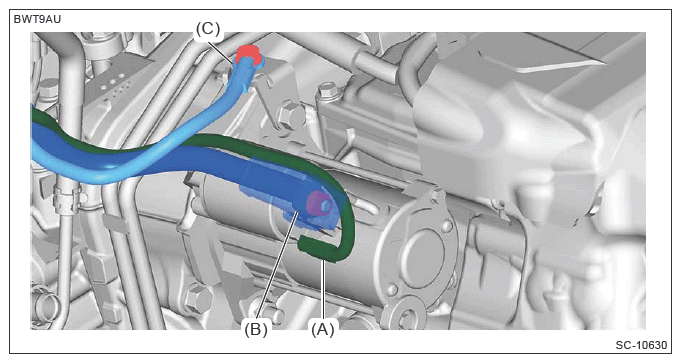

7. Connect the ground terminal (C).

   Tightening torque:

   14 N.m (1.4 kgf-m, 10.3 ft-lb)

8. Connect the terminal B (B) and connector (A).

   Tightening torque:

   11 N.m (1.1 kgf-m, 8.1 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

9. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .

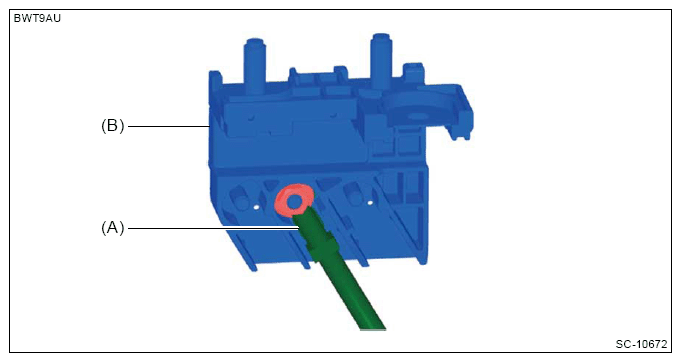

10. Connect the terminal (A) to the slow blow fuse (B).

    Tightening torque:

    5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

    Courtesy of SUBARU OF AMERICA, INC.

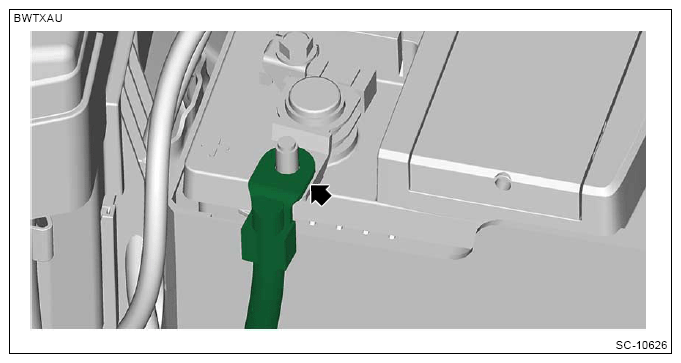

11. Set the terminal of battery cable assembly to the terminal base.

    Courtesy of SUBARU OF AMERICA, INC.

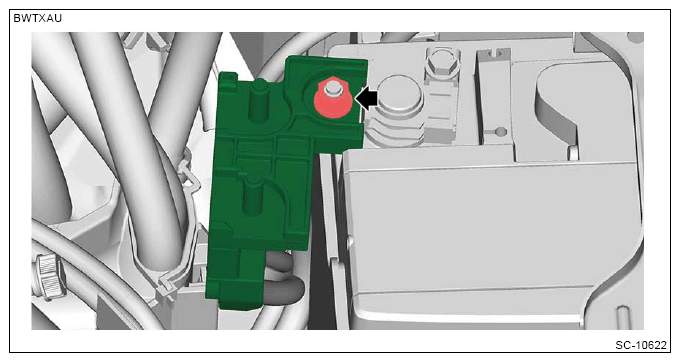

12. Connect the slow blow fuse to the terminal base.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    Courtesy of SUBARU OF AMERICA, INC.

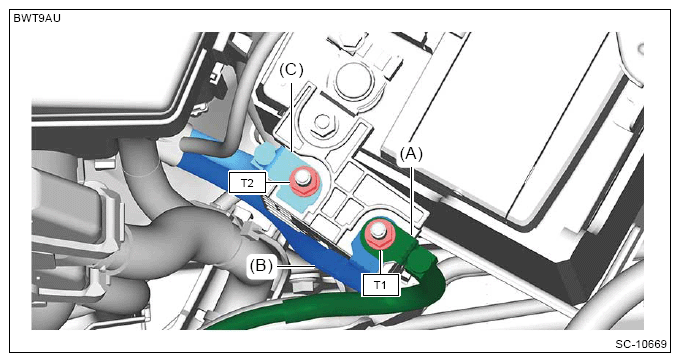

13. Connect the terminal (C), terminal (B) and terminal (A).

    Tightening torque:

    T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

    Fig 1: Battery Terminals (With Torque Specification)

    Courtesy of SUBARU OF AMERICA, INC.

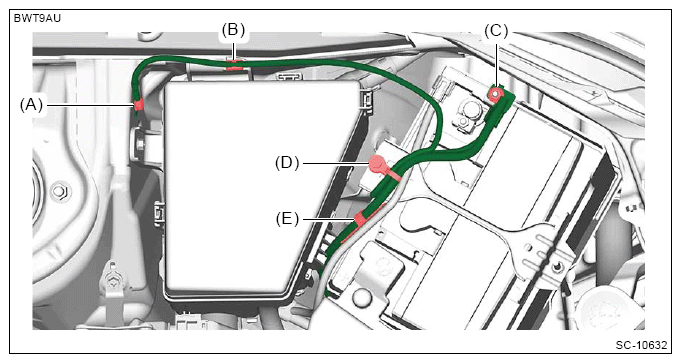

14. Install the battery cable assembly to the clip (E).
15. Install the battery cable holder (D), and connect the ground terminal (C).

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

16. Install the ground cable to the clip (B), and connect the ground terminal (A).

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
