Engine Starting System & Charging System (2.5L): Generator: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
3. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL>V-BELT .

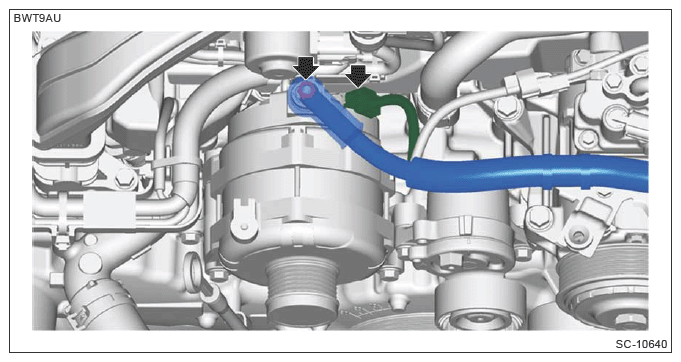

4. Disconnect the connector and terminal B.

   Courtesy of SUBARU OF AMERICA, INC.

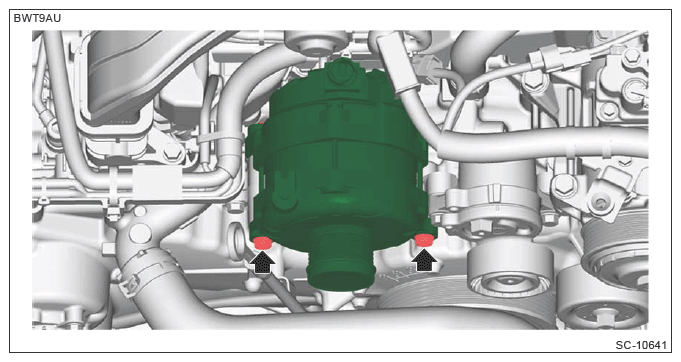

5. Remove the generator.

Courtesy of SUBARU OF AMERICA, INC.
