Components With Torque Specifications: Mirror

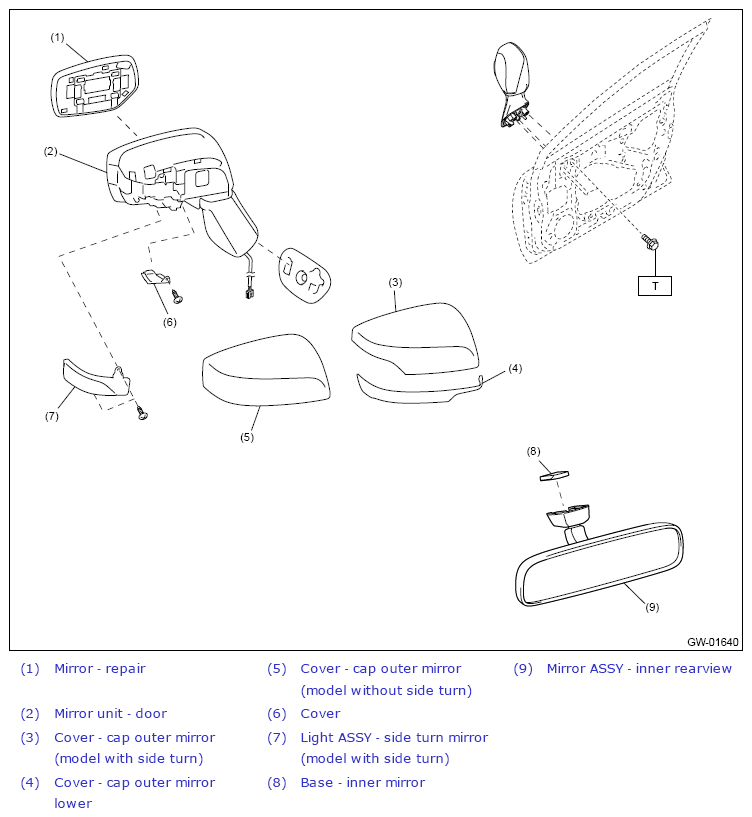

Fig 1: Mirror Unit Components (With Torque Specification)
G13648995Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
