Check Operation
- Disconnect the outer mirror connector.
- Apply battery voltage between the outer mirror connector terminals and check the mirror operation.

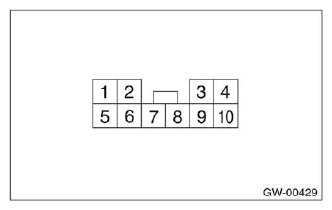

Terminal No. Inspection conditions Switch position - - OFF 3 (+) - 8 (-) Apply battery voltage between terminals. UP 8 (+) - 3 (-) Apply battery voltage between terminals. DOWN 7 (+) - 3 (-) Apply battery voltage between terminals. LEFT 3 (+) - 7 (-) Apply battery voltage between terminals. RIGHT - If it does not operate normally, replace the outer mirror assembly.
