Rear Sub Switch
- Remove the switch - power window sub.

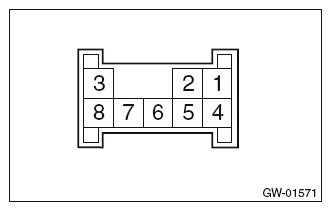

- Check the resistance between terminals of the switch - power window sub.
Terminal No. Inspection conditions Standard Rear 4 - 5 7 - 8 OFF Less than 1 Ω 5 - 6
6 - 81 MΩ or more 5 - 6
7 - 8UP Less than 1 Ω 4 - 5
4 - 81 MΩ or more 4 - 5
6 - 8DOWN Less than 1 Ω 4 - 6

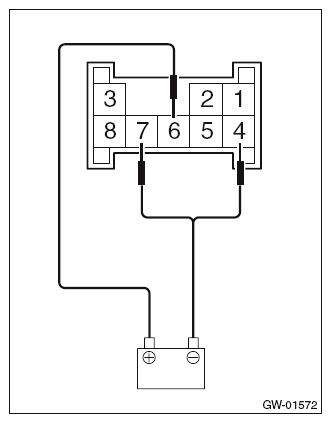

7 - 81 MΩ or more - Check the switch light illumination condition.
Terminal No. Inspection conditions Specification Rear 6 - 7, 4 Battery connection between terminals Light ON - Replace the switch - power window sub if it is found defective.
