Main Switch

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
  3. Remove the panel - power window main switch.
    CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
    1. Insert a sheet of protective paper (a) between panel - power window main switch and trim panel - front door.
    2. Remove the screws and disconnect the connector.

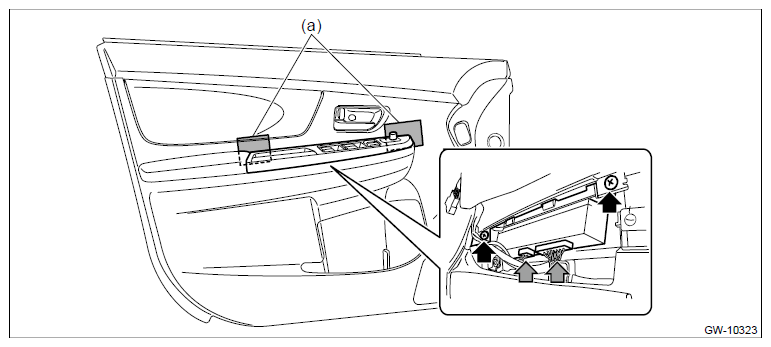

      G12456005Courtesy of SUBARU OF AMERICA, INC.
    3. Release the claws, and then remove the panel - power window main switch.

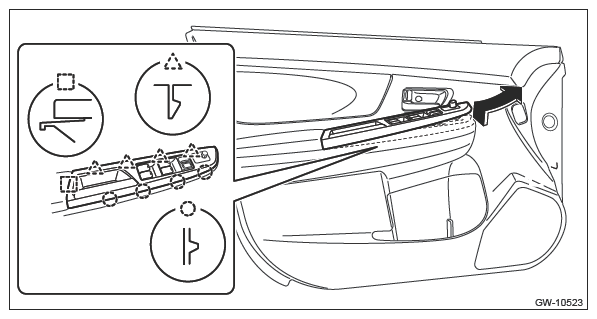

      G13262769Courtesy of SUBARU OF AMERICA, INC.
    4. Release the claws, and then remove the switch - power window main.
      G12456009Courtesy of SUBARU OF AMERICA, INC.
