Engine Mechanical System (2.0L): Compression: Inspection

CAUTION: After warming-up, engine becomes very hot. Be careful not to burn yourself during measurement.

NOTE:

Before checking the compression pressure, the compression condition of each cylinder can be confirmed as a guide by using the compression measurement mode in Subaru Select Monitor. Refer to ENGINE (DIAGNOSTICS) (W/O STI)>ACTIVE TEST>OPERATION .
In the compression measurement mode, the compression condition is judged by each cylinder speed. The high speed cylinder has low compression pressure and low speed cylinder has high compression pressure.

After warming-up the engine, turn the ignition switch to OFF.
Make sure that the battery is fully charged.
Check the starter motor for satisfactory performance and operation.
Remove the fuse of fuel pump from main fuse box.

Courtesy of SUBARU OF AMERICA, INC.
Start the engine and run it until it stalls.
After the engine stalls, crank it for five more seconds.
Turn the ignition switch to OFF.
Remove all spark plugs. Refer to IGNITION(W/O STI)>SPARK PLUG>REMOVAL .

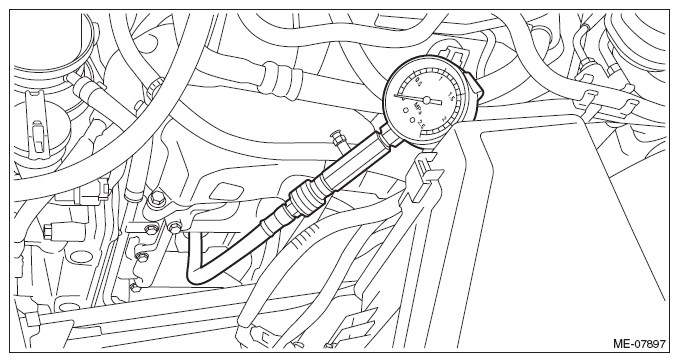

Install the compression gauge to the spark plug hole.
NOTE: When using a screw-in type compression gauge, the screw should be less than 25 mm (0.98 in) long.

Courtesy of SUBARU OF AMERICA, INC.
Insert the engine control module (ECM) to the bracket.

Courtesy of SUBARU OF AMERICA, INC.
Install the bolt which secures the engine control module (ECM) to the bracket, and then secure the engine wiring harness and bulkhead harness to the bracket with clip (A) and clip (B).
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the battery. Refer to STARTING/CHARGING SYSTEMS(W/O STI)>BATTERY>INSTALLATION .
Turn the ignition switch to ON.
Depress the accelerator pedal to full throttle.
Crank the engine by starter motor and read the value when the needle of the compression gauge becomes stable.
NOTE:
- Perform at least two measurements per cylinder, and make sure that the values are correct.
- If the compression pressure is out of standard, check or adjust the pistons, valves and cylinders.
Compression pressure:

At 200 - 300 r/min

Standard

1, 350 - 1, 750 kPa (14 - 18 kg/cm² , 196 - 254 psi)

Difference between cylinders

100 kPa (1 kg/cm² , 14 psi) or less
After inspection, install the related parts in the reverse order of removal.

NOTE: When compression pressure is checked, the malfunction indicator light illuminates and DTC (P0087) may be stored in ECM. When the malfunction indicator light has illuminated, perform the Clear Memory Mode. Refer to ENGINE (DIAGNOSTICS) (W/O STI)>CLEAR MEMORY MODE .
