Diagnostic Method

Close the Evaporative Leak Check Module switching valve, and close the fuel tank completely, and perform the forced purging. If pressure change amount is 667 Pa (5 mmHg, 0.2 inHg) or less, judge as malfunction of purge flow.

Courtesy of SUBARU OF AMERICA, INC.

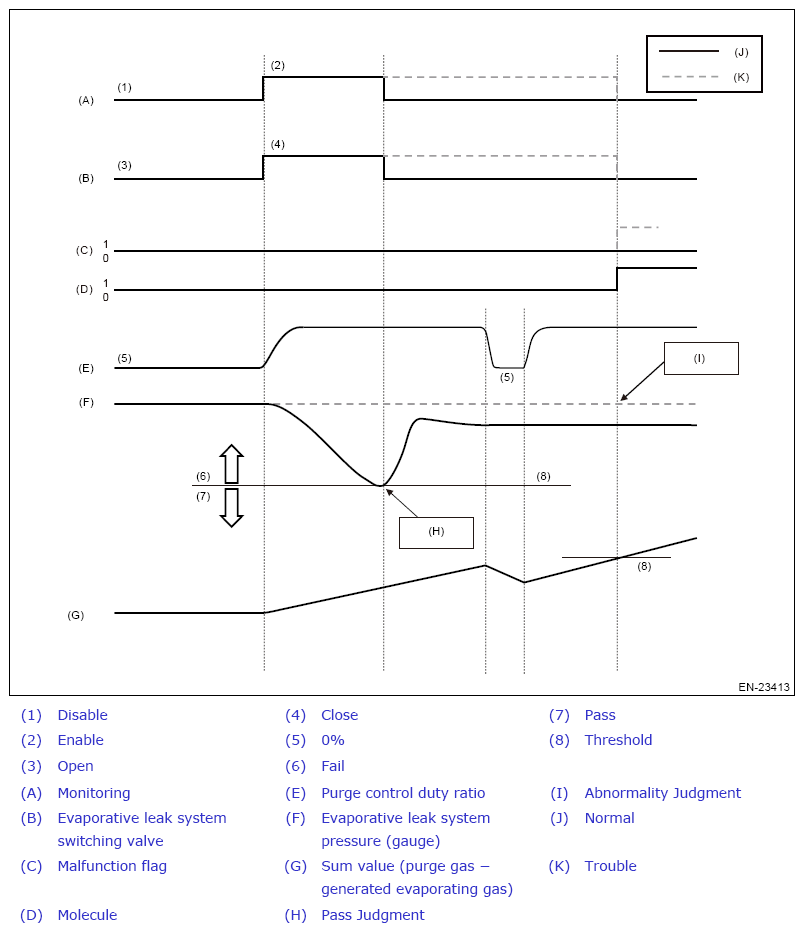

Judge as NG when the following conditions are established.

JUDGMENT VALUE SPECIFICATION

Malfunction Criteria

Threshold Value

Evaporative Leak Check Module pressure (gauge)

> -400 Pa (-3 mmHg, -0.1 inHg)

Integrated purge gas amount

≥ 3 g (0.11 oz)⁽¹⁾

⁽¹⁾	It is approximately 2 sec per the integration of purge to reach 1g at vehicle speed of 40 MPH.

Time needed for diagnosis: Less than 1 second

Malfunction indicator light illumination: Illuminates as soon as a malfunction occurs.
