Section 7 (Lighting System): General Description: Specification
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|

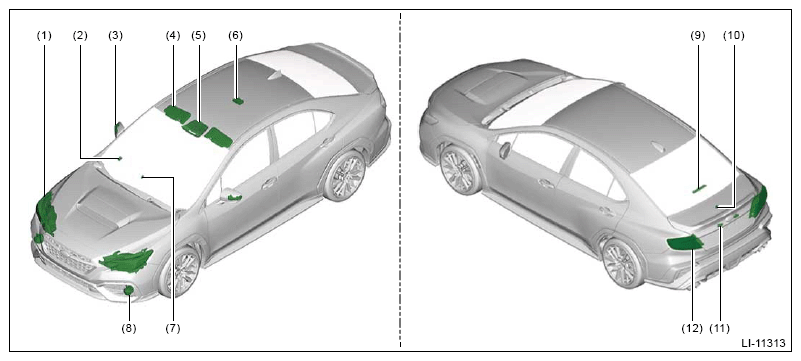

| No. |
Description |
Capacity and wattage |
Type |
| (1) |
Headlight (model without SRH) |
Daytime running light/low beam/high beam |
12 V - 7/20/25 W (LED) |
|
| Parking light/front turn signal light |
12 V - 8/28 W |
7444NA |
| Front side marker lights |
12 V - 5 W |
W5W |
| (1) |
Headlight (model with SRH) |
Low beam/high beam |
12 V - 21/26 W (LED) |
|
| Front turn signal light |
12 V - 6.2 W (LED) |
|
| Parking light/accessory light/daytime running light |
12 V - 0.4/0.6/4.6 W (LED) |
|
| Front side marker lights |
12 V - 0.5 W (LED) |
|
| (2) |
Glove box light |
12 V (LED) |
|
| (3) |
Side turn signal light |
12 V - 0.4 W (LED) |
|
| (4) |
Vanity mirror light |
12 V - 2 W |
- |
| (5) |
Spot map light |
12 V - 8 W |
- |
| (6) |
Room light |
12 V - 8 W |
- |
| (7) |
Pocket light |
12 V (LED) |
|
| (8) |
Front fog light |
12 V - 5.4 W (LED) |
|
| (9) |
High-mounted stop light |
13.5 V - 1.5 W (LED) |
|
| (10) |
Trunk room light |
12 V - 3.8 W |
SAE#194 |
| (11) |
License plate light |
12 V - 5 W |
W5W |
| (12) |
Rear combination light |
Tail light/stop light |
12 V - 2.0/3.2 W (LED) |
|
| Rear turn signal light |
12 V - 21 W |
WY21W |
| Back-up light |
12 V - 2.4 W (LED) |
|
| Rear side marker light |
12 V - 1.8 W (LED) |
|
