Headlight Assembly: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
Do not perform work with wet hands, because there is a possibility of electrical shock.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL

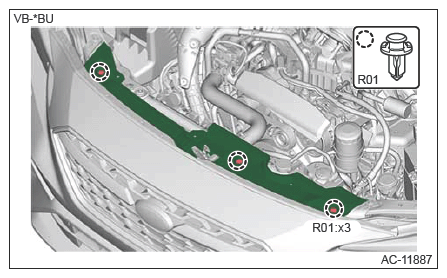

Remove the clips, and remove the cover UPR front.

Courtesy of SUBARU OF AMERICA, INC.
Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL

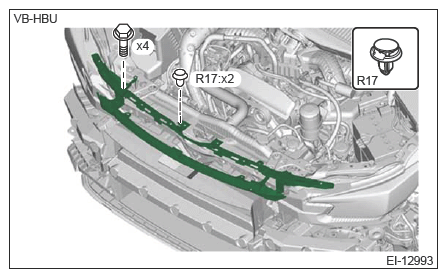

Remove the bolts and clips, and remove the energy absorber plate UPR.

Courtesy of SUBARU OF AMERICA, INC.

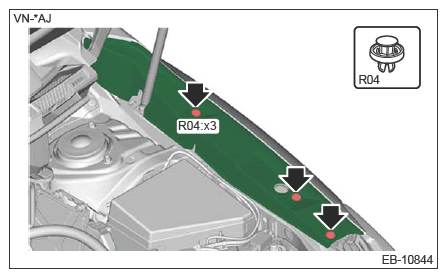

Remove the clip, and remove the cover fender UPR.

Courtesy of SUBARU OF AMERICA, INC.
Remove the access buzzer. (When the light assembly head on the left side is removed) Ref. to SECURITY AND LOCKS>ACCESS BUZZER>REMOVAL

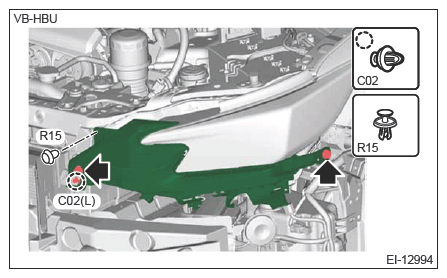

Remove the bolts and clips, and remove the bracket corner front.

Courtesy of SUBARU OF AMERICA, INC.

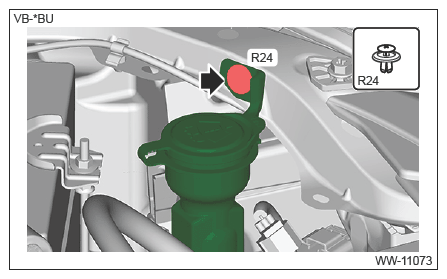

Remove the clip of the washer tank hose. (When the light assembly head on the left side is removed)
NOTE:
In order to make it easier to access the light assembly head connector, place the washer tank hose aside so that it does not interfere with work.

Courtesy of SUBARU OF AMERICA, INC.

Remove the light assembly head.

CAUTION:

Be careful not to damage the headlight assembly and the fender COMPL front.

Disconnect the connector.

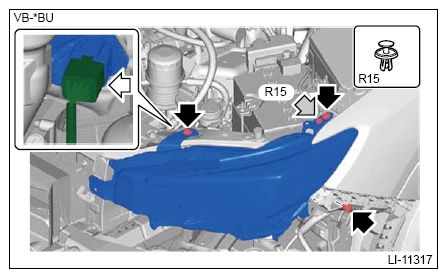

Remove the bolts and clips, and remove the light assembly head.
