Light Control Sensor: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the grille speaker side. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER
  3. Remove the grille front defroster.

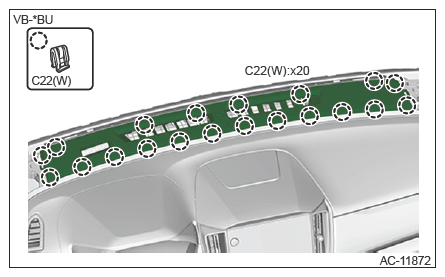

    1. Release the clips.
      G14612142Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the grille front defroster.

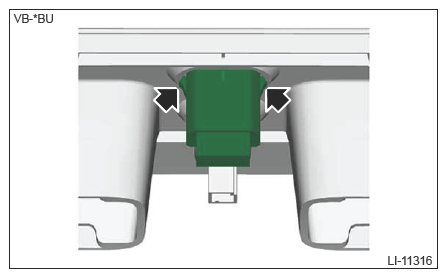

  4. Disconnect the claws and then remove the auto light sensor.
    G14612356Courtesy of SUBARU OF AMERICA, INC.
