Side Turn Signal Light Assembly: Inspection

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

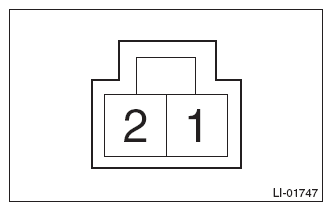

Apply battery voltage between the connector terminals to check the lighting condition of the light.

CAUTION:

When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.

Incorrect polarity connection may cause internal LED damage.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Specification
1 (+) - 2 (-)	Apply battery voltage.	Light ON

Replace the light assembly side turn mirror if faulty is found in the inspection.
NOTE:
Since LED is used for the light, replace the light assembly side turn mirror if the light does not illuminate.
