Spot Map Light: Inspection
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

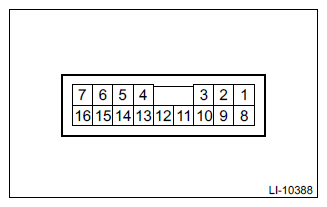

- Measure the resistance between connector terminals.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Light switch
| Terminal No. |
Inspection conditions |
Standard |
| 1 - 13 |
Switch OFF |
1 MΩ or more |
| Switch ON |
Approx. 18 Ω |
- Door switch
| Terminal No. |
Inspection conditions |
Specification |
| 1 - 4 |
Switch door |
Continuity exists |
- Replace the harness and bulb if it is found defective.
