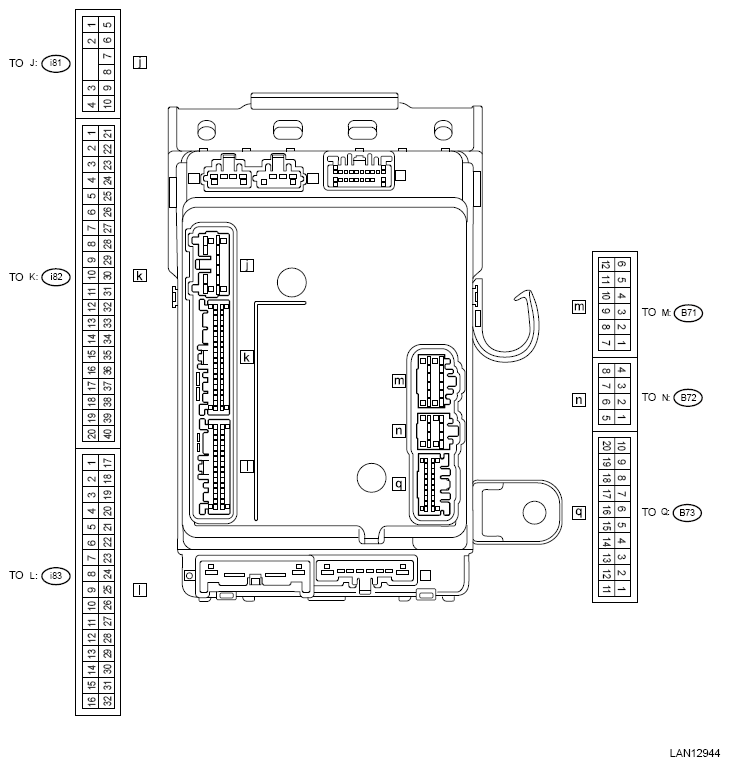

Body Integrated Unit

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.

Contents

Measuring condition

Standard

(B71) No. 1 ←→ Chassis ground

BAT power supply (control)

Always

9 - 16 V

(B71) No. 2 ←→ Chassis ground

Turn light output, right front

Right front turn signal OFF → ON

Less than 1 V → 9 - 16 V

(B71) No. 3

(B71) No. 4 ←→ Chassis ground

BAT power supply (illumination)

Always

9 - 16 V

(B71) No. 5

(B71) No. 6

(B71) No. 7 ←→ Chassis ground

BAT power supply (tail)

Always

9 - 16 V

(B71) No. 8 ←→ Chassis ground

Turn light output, left front

Left front turn signal OFF → ON

Less than 1 V → 9 - 16 V

(B71) No. 9

(B71) No. 10 ←→ Chassis ground

Clearance/position light output

Clearance/position light OFF → ON

Less than 1 V → 9 - 16 V

(B71) No. 11 ←→ Chassis ground

Illumination output

Illumination OFF → ON

Less than 1 V → 9 - 16 V

(B71) No. 12 ←→ Chassis ground

Key lock solenoid output
(CVT Model without the keyless access with push button start system)

Ignition key inserted, shift lever, P range → other than P range

Less than 1 V → 9 - 16 V

(B72) No. 1 ←→ Chassis ground

GND

Always

Less than 1 Ω

(B72) No. 2

(B72) No. 3

(B72) No. 4 ←→ Chassis ground

BAT power supply (shift lock/key lock/turn light)

Always

9 - 16 V

(B72) No. 5 ←→ Chassis ground

DRL relay output

DRL relay output OFF → ON

9 - 16 V → Less than 1 V

(B72) No. 6

(B72) No. 7

(B72) No. 8

(B73) No. 1

(B73) No. 2

(B73) No. 3 ←→ Chassis ground

Hood switch (closed side)

Hood closed → open

Less than 1 V → 9 - 16 V

(B73) No. 4 ←→ Chassis ground

Hood switch (open side)

Hood open → close

Less than 1 V → 9 - 16 V

(B73) No. 5

(B73) No. 6

(B73) No. 7 ←→ Chassis ground

BAT (backup)

Always

9 - 16 V

(B73) No. 8

(B73) No. 9 ←→ Chassis ground

Security horn output

Security horn, not operating → operating

9 - 16 V → Less than 1 V

(B73) No. 10

(B73) No. 11

(B73) No. 12

(B73) No. 13

(B73) No. 14 ←→ Chassis ground

EGI immobilizer communication
(Without keyless access with push button start system and without immobilizer control module)

Always

1 MΩ or more

(B73) No. 15

(B73) No. 16 ←→ Chassis ground

Stop light switch

Stop light switch OFF → ON

Less than 1 V → 9 - 16 V

(B73) No. 17

Body CAN (H)

Except for sleep status ⁽¹⁾

Serial communication

(B73) No. 18 ←→ Chassis ground

MT reverse switch
(MT model)

Reverse switch OFF (other than shift lever reverse) → ON (reverse)

Less than 1 V → 9 - 16 V

(B73) No. 19

Body CAN (L)

Except for sleep status ⁽¹⁾

Serial communication

(B73) No. 20

LAMP LIN

Except for sleep status ⁽¹⁾

Serial communication

(i81) No. 1 ←→ Chassis ground

Tail light output

Tail light output OFF → ON

Less than 1 V → 9 - 16 V

(i81) No. 2 ←→ Chassis ground

Turn light output, left rear

Left rear turn signal OFF → ON

Less than 1 V → 9 - 16 V

(i81) No. 3 ←→ Chassis ground

Shift lock solenoid
(CVT model)

IG ON shift lever P range stop light switch OFF (brake pedal not depressed) → ON (brake pedal depressed)

Less than 1 V → 9 - 16 V

(i81) No. 4 ←→ Chassis ground

GND

Always

Less than 1 Ω

(i81) No. 5 ←→ Chassis ground

Turn light output, right rear

Right rear turn signal OFF → ON

Less than 1 V → 9 - 16 V

(i81) No. 6 ←→ Chassis ground

Door lock output (driver's seat unlock)

When UNLOCK signal is output

Less than 1 V → 9 - 16 V

(i81) No. 7 ←→ Chassis ground

Electric fuel unlock output

When UNLOCK signal is output

Less than 1 V → 9 - 16 V

(i81) No. 8

(i81) No. 9 ←→ Chassis ground

Room light output

Door closed → open with the light side SW interlocked with the door

9 - 16 V → Less than 1 V

(i81) No. 10

(i82) No. 1

(i82) No. 2

(i82) No. 3 ←→ Chassis ground

Immobilizer antenna (A)
(Without keyless access with push button start system and without immobilizer control module)

When ignition key inserted

Pulse generation

(i82) No. 4 ←→ Chassis ground

Immobilizer antenna (B)
(Without keyless access with push button start system and without immobilizer control module)

When ignition key inserted

Pulse generation

(i82) No. 5

(i82) No. 6 ←→ Chassis ground

Opener switch (rear gate/trunk)

Opener switch OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 7 ←→ (i82) No. 8

Front wiper intermittent sensitivity adjustment

Always

0 - 6 kΩ

(i82) No. 8 ←→ Chassis ground

Front wiper intermittent sensitivity adjustment GND

(i82) No. 9 ←→ Chassis ground

Key ring illumination output
(Without keyless access with push button start system)

Key ring OFF → ON (IG ON → OFF with driver's door open)

Less than 1 V → 9 - 16 V

(i82) No. 10 ←→ Chassis ground

Map light output

Door closed → open with the light side SW interlocked with the door

Less than 1 V → 9 - 16 V

(i82) No. 11

(i82) No. 12 ←→ Chassis ground

Manual unlock switch

Door unlock switch OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 13 ←→ Chassis ground

Door switch (passenger's seat)

Passenger's door closed → open

9 - 16 V → Less than 1 V

(i82) No. 14 ←→ Chassis ground

Door switch (rear seat LH)

Rear seat LH door closed → open

9 - 16 V → Less than 1 V

(i82) No. 15 ←→ Chassis ground

Door switch (rear gate/trunk)

Trunk closed → open

9 - 16 V → Less than 1 V

(i82) No. 16

(i82) No. 17

(i82) No. 18

(i82) No. 19 ←→ Chassis ground

Key-in switch
(Without keyless access with push button start system)

Ignition key not inserted → inserted

Less than 1 V → 9 - 16 V

ACC switch
(With keyless access with push button start system)

ACC switch OFF → ON

(i82) No. 20 ←→ Chassis ground

Security light output

When security light is illuminating

Pulse generation

(i82) No. 21

(i82) No. 22 ←→ Chassis ground

Turn signal switch (press and held)

Ignition switch ON
Turn signal switch (press and held) OFF → ON (right/left)

9 - 16 V → Less than 1 V

(i82) No. 23

(i82) No. 24

(i82) No. 25

(i82) No. 26 ←→ Chassis ground

Dimmer Hi switch

Dimmer switch Hi beam OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 27 ←→ Chassis ground

Door switch (rear seat RH)

Rear seat RH door closed → open

9 - 16 V → Less than 1 V

(i82) No. 28 ←→ (i82) No. 8

Illumination sensor signal

Lighting AUTO switch ON

0 - 5 V

(i82) No. 29

(i82) No. 30

(i82) No. 31

(i82) No. 32 ←→ Chassis ground

Manual lock switch

Door lock switch OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 33 ←→ Chassis ground

Turn signal RH switch (lightly pressed)

Right turn signal switch (lightly pressed) OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 34 ←→ (i82) No. 8

Illumination sensor power supply output

Ignition switch OFF → ON

1 - 5 V

(i82) No. 35 ←→ Chassis ground

Lighting I switch

Lighting switch 1 OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 36 ←→ Chassis ground

Dimmer Pass switch

Dimmer switch Pass OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 37 ←→ Chassis ground

Turn hazard switch

Turn hazard switch OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 38 ←→ Chassis ground

Turn signal LH switch (lightly pressed)

Left turn signal switch (lightly pressed) OFF → ON

9 - 16 V → Less than 1 V

(i82) No. 39 ←→ Chassis ground

Door switch (driver's seat)

Driver's door closed → open

9 - 16 V → Less than 1 V

(i82) No. 40 ←→ Chassis ground

P range switch
(CVT model)

Shift lever, other than P range → P range

9 - 16 V → Less than 1 V

(i83) No. 1 ←→ Chassis ground

Front wiper Lo switch

Front wiper Lo switch OFF → ON

Less than 1 V → 9 - 16 V

(i83) No. 2

P/W LIN

Except for sleep status ⁽¹⁾

Serial communication

(i83) No. 3 ←→ Chassis ground

Rear wiper switch (INT)

Rear wiper switch INT OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 4

(i83) No. 5 ←→ Chassis ground

(i83) No. 6 ←→ Chassis ground

Door lock status switch passenger's seat
(With keyless access with push button start system)

Passenger's door lock → unlock

9 - 16 V → Less than 1 V

(i83) No. 7

(i83) No. 8

(i83) No. 9

(i83) No. 10 ←→ Chassis ground

Rear washer switch

Rear washer switch OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 11

(i83) No. 12 ←→ Chassis ground

Front washer switch

Front washer switch OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 13

(i83) No. 14

(i83) No. 15

(i83) No. 16

(i83) No. 17 ←→ Chassis ground

Front wiper Hi switch

Front wiper Hi switch OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 18

BODY LIN

Except for sleep status ⁽¹⁾

Serial communication

(i83) No. 19 ←→ Chassis ground

Rear wiper switch (ON)

Ignition switch ON
Rear wiper switch OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 20 ←→ Chassis ground

Lighting switch AUTO
(Except for Canada)

Lighting switch AUTO
OFF → ON

9 - 16 V → Less than 1 V

Lighting switch OFF
(For Canada)

Lighting switch OFF
OFF → ON

(i83) No. 21 ←→ Chassis ground

Front wiper AUTO/INT switch

Ignition switch ON
Front wiper AUTO/INT switch OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 22 ←→ Chassis ground

Door lock status switch driver's seat
(With keyless access with push button start system)

Driver's door lock → unlock

9 - 16 V → Less than 1 V

(i83) No. 23

(i83) No. 24

(i83) No. 25

(i83) No. 26 ←→ Chassis ground

Front fog light switch

Front fog light switch OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 27

(i83) No. 28 ←→ Chassis ground

Lighting II switch

Lighting switch II OFF → ON

9 - 16 V → Less than 1 V

(i83) No. 29

(i83) No. 30 ←→ Chassis ground

Luggage/trunk light output

Trunk closed → open

9 - 16 V → Less than 1 V

(i83) No. 31 ←→ Chassis ground

Collision detection signal

Ignition switch ON

Pulse output

(i83) No. 32

⁽¹⁾	CAN sleep state: Hold on for approx. one minute with ignition switch OFF and all the doors and rear gate closed.
