Transmission Control Module (TCM): Installation

Install the TCM to the bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

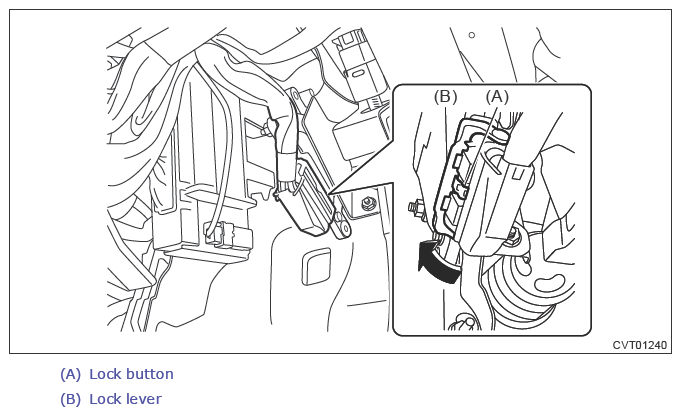

Install the harness connector to TCM.
NOTE:
- Install the connector in the reverse order of removal.
- Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.
Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
Using the Subaru Select Monitor, perform «Clear AT learning value» on «Work Support», and perform «AT learning mode». Refer to CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS)>LEARNING CONTROL>PROCEDURE .
