DTC P2530: Ignition Switch Run Position Circuit: Notes
Immediately at fault recognition
Trouble symptom:
Faulty TCM operation
CAUTION:
Use the check board when measuring the TCM terminal voltage and resistance.

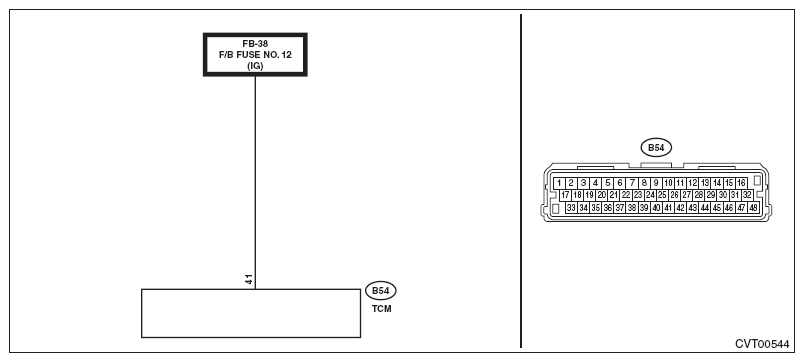

Wiring diagram:
CVT control system Refer to WIRING SYSTEM>CVT CONTROL SYSTEM .
- CHECK CONNECTOR.
Check the installing condition of TCM connector.
Is the TCM connector installed properly?
Yes: Go to 2.
No: Install the TCM connector.
- CHECK INPUT VOLTAGE OF TCM.
- Turn the ignition switch to ON.
- Measure the voltage between TCM connector and chassis ground. (While wiggling the harness)
Connector & terminal
(B54) No. 41 (+) - Chassis ground (-):
Is the voltage 8 V or more?
Yes: Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
NOTE: In this case, the following items may be the cause of fault.- Open circuit or short circuit to ground of harness between TCM connector and ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch (IG relay 1 for model with push button start)
No: Repair the harness and connector.
NOTE: In this case, repair the following item:- Open circuit or short circuit to ground of harness between TCM connector and ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch connector (IG relay 1 connector for model with push button start)
- Poor contact of ignition switch (IG relay 1 for model with push button start)
