DTC P2751: Intermediate Shaft Speed Sensor "C" Circuit No Signal: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

CAUTION: Use the check board when measuring the TCM terminal voltage and resistance.

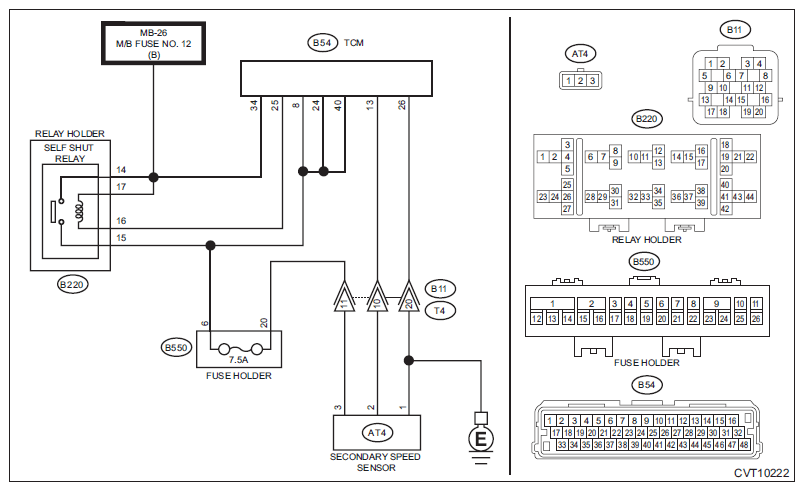

Wiring diagram:

CVT control system Refer to WIRING SYSTEM>CVT CONTROL SYSTEM .

G11578088Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK FUSE.
    1. Turn the ignition switch to OFF.
    2. Remove the fuse (7.5 A) from the fuse holder.
    3. Check the fuse.

    Is the check result OK?

    Yes: Go to  2.

    No: Replace the fuse. If the fuse blows out easily, repair the short circuit of harness.

  2. CHECK HARNESS.
    1. Disconnect the TCM connector.
    2. Remove the self shut relay.
    3. Measure the resistance between TCM connector and relay holder.

      Connector & terminal

      (B54) No. 25 - (B220) No. 16:

      (B54) No. 8 - (B220) No. 15:

      (B54) No. 24 - (B220) No. 15:

      (B54) No. 40 - (B220) No. 15:

    Is the resistance less than 1 Ω?

    Yes: Go to  3.

    No: Repair the open circuit of harness.

  3. CHECK HARNESS.

    Measure the resistance between TCM connector and chassis ground.

    Connector & terminal

    (B54) No. 25 - Chassis ground:

    (B54) No. 8 - Chassis ground:

    (B54) No. 24 - Chassis ground:

    (B54) No. 40 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes: Go to  4.

    No: Repair the short circuit of harness.

  4. CHECK RELAY POWER SUPPLY.

    Measure the voltage between relay holder and chassis ground.

    Connector & terminal

    (B220) No. 14 (+) - Chassis ground (-):

    (B220) No. 17 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes: Go to  5.

    No: Repair the open or short circuit of harness.

  5. CHECK SELF SHUT RELAY.

    Measure the resistance between self shut relay terminals.

    Terminals

    No. 16 - No. 17:

    Is the resistance 110 - 140 Ω?

    Yes: Go to  6.

    No: Replace the self shut relay.

  6. CHECK SELF SHUT RELAY.

    Measure the resistance between self shut relay terminals.

    Terminals

    No. 14 - No. 15:

    Is the resistance 1 MΩ or more?

    Yes: Go to  7.

    No: Replace the self shut relay.

  7. CHECK INPUT SIGNAL FOR TCM.
    1. Connect the TCM connector.
    2. Install the self shut relay.
    3. Read the data of «Control module voltage» using Subaru Select Monitor.

    Is the «Control module voltage» 10 V or more?

    Yes: Current condition is normal. Check for poor contact in connectors or harnesses, and repair the defective part.

    No: Go to  8.

  8. CHECK HARNESS.
    1. Turn the ignition switch to OFF.
    2. Disconnect the TCM connector.
    3. Disconnect the transmission connector.
    4. Measure the resistance between TCM connector and transmission connectors.

      Connector & terminal

      (B54) No. 13 - (B11) No. 10:

      (B54) No. 26 - (B11) No. 20:

      (B550) No. 20 - (B11) No. 11:

    Is the resistance less than 1 Ω?

    Yes: Go to  9.

    No: Repair the open circuit of harness.

  9. CHECK HARNESS.

    Measure the resistance between TCM connector and chassis ground.

    Connector & terminal

    (B54) No. 13 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes: Go to  10.

    No: Repair the short circuit of harness.

  10. CHECK HARNESS.

    Measure the resistance between relay holder and fuse holder.

    Connector & terminal

    (B220) No. 15 - (B550) No. 6:

    Is the resistance less than 1 Ω?

    Yes: Go to  11.

    No: Repair the open circuit of harness.

  11. CHECK TRANSMISSION HARNESS.
    1. Install the fuse.
    2. Connect the TCM connector.
    3. Turn the ignition switch to ON.
    4. Measure the voltage between transmission connector terminals.

      Connector & terminal

      (B11) No. 11 (+) - Chassis ground (-):

    Is the voltage 10 - 13 V?

    Yes: Go to  12.

    No: Repair the open circuit of harness or poor contact of connector.

  12. CHECK INPUT SIGNAL FOR TCM.
    1. Turn the ignition switch to OFF.
    2. Connect the transmission connector.
    3. Lift up the vehicle.
    4. Start the engine.
    5. Set the select lever to "D" range.
    6. Read the data of «Secondary Rev Speed» using Subaru Select Monitor.

    Does the value of «Secondary Rev Speed» change according to those of «Front Wheel Speed»?

    Yes: Current condition is normal. Repair the poor contacts of harnesses of secondary speed sensor and transmission connector.

    No: Go to  13.

  13. CHECK TRANSMISSION HARNESS.
    1. Turn the ignition switch to OFF.
    2. Disconnect the transmission connector.
    3. Disconnect the secondary speed sensor connector.
    4. Measure the resistance between transmission connector and secondary speed sensor connector.

      Connector & terminal

      (T4) No. 10 - (AT4) No. 2:

      (T4) No. 11 - (AT4) No. 3:

      (T4) No. 20 - (AT4) No. 1:

    Is the resistance less than 1 Ω?

    Yes: Go to  14.

    No: Replace the transmission harness.

  14. CHECK SECONDARY SPEED SENSOR HARNESS.

    Measure the resistance between transmission connector and chassis ground.

    Connector & terminal

    (T4) No. 10 - Chassis ground:

    (T4) No. 11 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes: Go to  15.

    No: Repair the short circuit of harness.

  15. CHECK SECONDARY SPEED SENSOR.
    1. Turn the ignition switch to OFF.
    2. Replace the secondary speed sensor. Refer to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>SECONDARY SPEED SENSOR .
    3. Perform the Clear Memory Mode. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS)>CLEAR MEMORY MODE .
    4. Read the DTC.

    Is DTC P2751 displayed?

    Yes: Go to  16.

    No: The original secondary speed sensor is defective.

  16. CHECK SELF SHUT RELAY.
    1. Turn the ignition switch to OFF.
    2. Replace the self shut relay.
    3. Perform the Clear Memory Mode. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS)>CLEAR MEMORY MODE .
    4. Read the DTC.

    Is DTC P2751 displayed?

    Yes: Replace the TCM. Refer to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>TRANSMISSION CONTROL MODULE (TCM) .

    No: The original self shut relay is defective.
