Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel assembly - rear shelf. Refer to EXTERIOR/INTERIOR TRIM>REAR SHELF TRIM>REMOVAL .

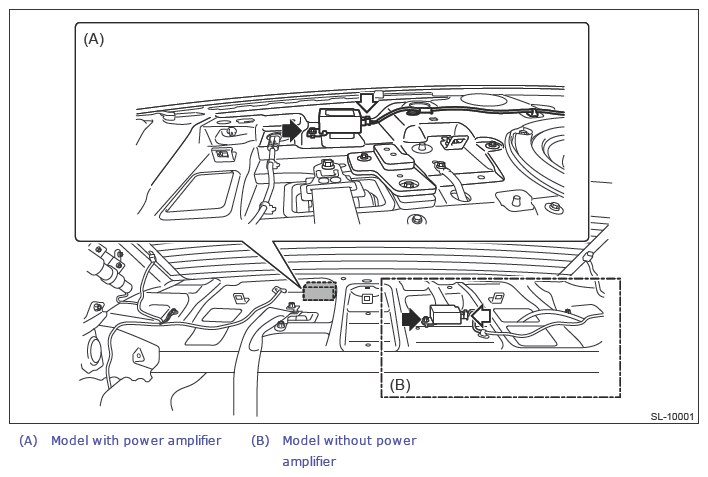

  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.
      NOTE: For models with power amplifier, installation position of the keyless entry control module is different.
G13649230Courtesy of SUBARU OF AMERICA, INC.
