Radar Sensor

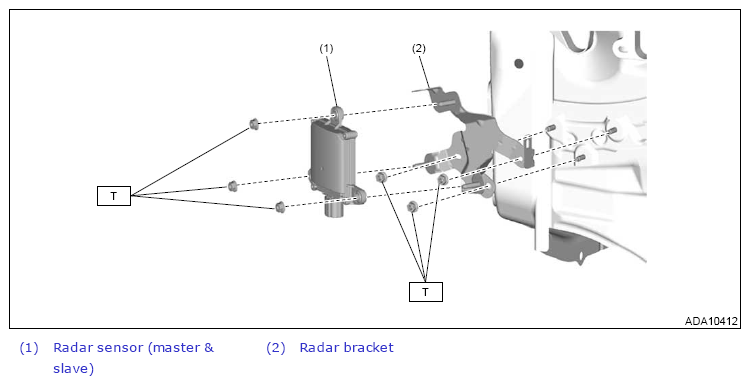

Fig 1: Radar Sensor Components (With Torque Specification)
G13649571Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
