Model With Push Button Start

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Failure of engine to start

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Refer to ENGINE (DIAGNOSTICS) (STI)>CLEAR MEMORY MODE>OPERATION ., and inspection mode Refer to ENGINE (DIAGNOSTICS) (STI)>INSPECTION MODE>PROCEDURE .

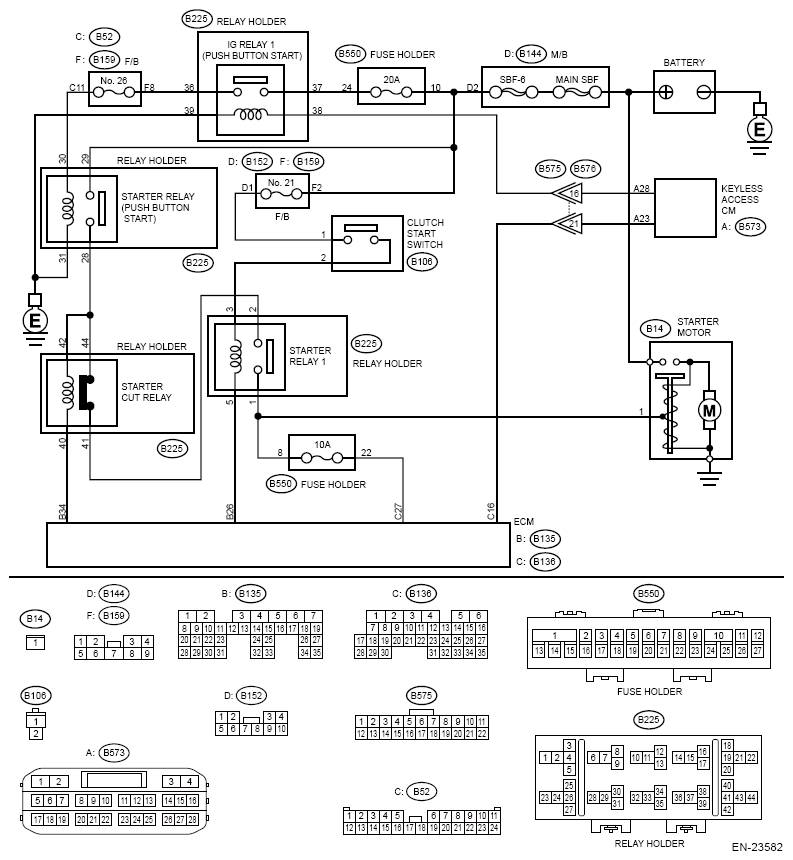

Wiring diagram:

Engine Electrical System Refer to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

G13650248Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK STARTER MOTOR.
    1. Turn the ignition to ON.
    2. Check the starter motor condition.

    Is the starter motor rotating?

    Yes:  Go to  2.

    No:  Repair the short circuit to power supply in harness.

    NOTE: In this case, repair the following harnesses:
    • Short circuit to power supply in harness between ECM connector and starter relay 1 connector
    • Short circuit to power supply in harness between ECM connector and starter motor
    • Short circuit to power supply in harness between starter relay 1 connector and starter motor
  2. CHECK HARNESS BETWEEN STARTER CUT RELAY CONNECTOR AND STARTER RELAY 1 CONNECTOR.
    1. Turn the ignition to OFF.
    2. Disconnect the connector from starter motor.
    3. Remove the starter cut relay.
    4. Remove the starter relay 1.
    5. Turn the ignition to ON.
    6. Measure the voltage between starter relay 1 connector and chassis ground.

    Connector & terminal

    (B225) No. 2 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes:  Repair the short circuit to power in harness between starter cut relay connector and starter relay 1 connector.

    No:  Go to  3.

  3. CHECK STARTER CUT RELAY.
    1. Connect the battery to starter cut relay terminals No. 40 and No. 42.
    2. Measure the resistance between starter cut relay terminals.

    Terminals

    No. 41 - No. 44:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  6.

    No:  Replace the starter cut relay. Refer to SECURITY AND LOCKS>STARTER CUT RELAY . Go to  4.

  4. CHECK HARNESS BETWEEN ECM AND STARTER RELAY 1 CONNECTOR.
    1. Disconnect the connector from ECM.
    2. Measure the resistance between ECM connector and chassis ground.

    Connector & terminal

    (B135) No. 26 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  5.

    No:  Repair the short circuit to ground in harness between ECM connector and starter relay 1 connector.

  5. CHECK STARTER RELAY 1.

    Measure the resistance between starter relay 1 terminals.

    Terminals

    No. 1 - No. 2:

    Is the resistance 1 MΩ or more?

    Yes:  Go to  6.

    No:  Replace the starter relay 1. Refer to ENGINE (DIAGNOSTICS) (STI)>ELECTRICAL COMPONENT LOCATION>LOCATION .

  6. CHECK HARNESS BETWEEN ECM, STARTER RELAY 1 CONNECTOR AND STARTER MOTOR.
    1. Disconnect the connector from ECM.
    2. Turn the ignition to ON.
    3. Measure the voltage between ECM connector and chassis ground.

    Connector & terminal

    (B136) No. 27 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes:  Repair the short circuit to power supply in harness.

    NOTE: In this case, repair the following harnesses:
    • Short circuit to power supply in harness between ECM connector and starter relay 1 connector
    • Short circuit to power supply in harness between ECM connector and starter motor
    • Short circuit to power supply in harness between starter relay 1 connector and starter motor

    No:  Repair the poor contact of ECM connector.
