Transmission Control Module (TCM): Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .

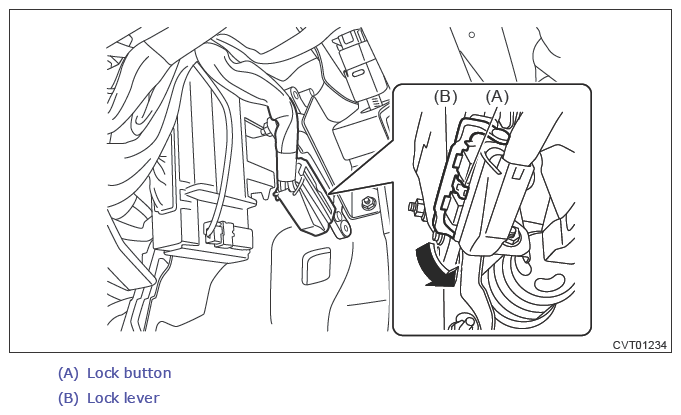

- Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
- Remove the TCM.
- Remove the TCM from the bracket.
