Electrical Specification

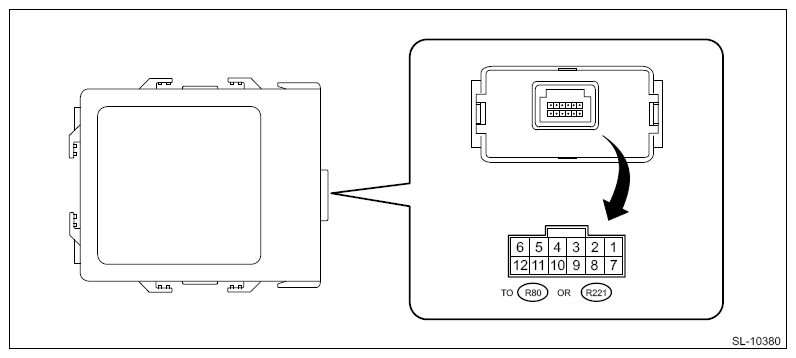

G11257227Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Item Measuring condition Standard
(R221) or (R80) No. 1 CAN-L Digital signal; can not be measured -
(R221) or (R80) No. 2 CAN-H Digital signal; can not be measured -
(R221) or (R80) No. 3 - - -
(R221) or (R80) No. 4 - - -
(R221) or (R80) No. 5 - - -
(R221) No. 6 ←→ Chassis ground Ignition power supply When ignition switch is ON 9 - 16 V
(R80) No. 6 - - -
(R221) or (R80) No. 7 ←→ Chassis ground GND Always 1 Ω or less
(R221) or (R80) No. 8 - - -
(R221) or (R80) No. 9 - - -
(R221) or (R80) No. 10 - - -
(R221) or (R80) No. 11 - - -
(R221) or (R80) No. 12 ←→ Chassis ground Battery power supply Always 9 - 16 V
