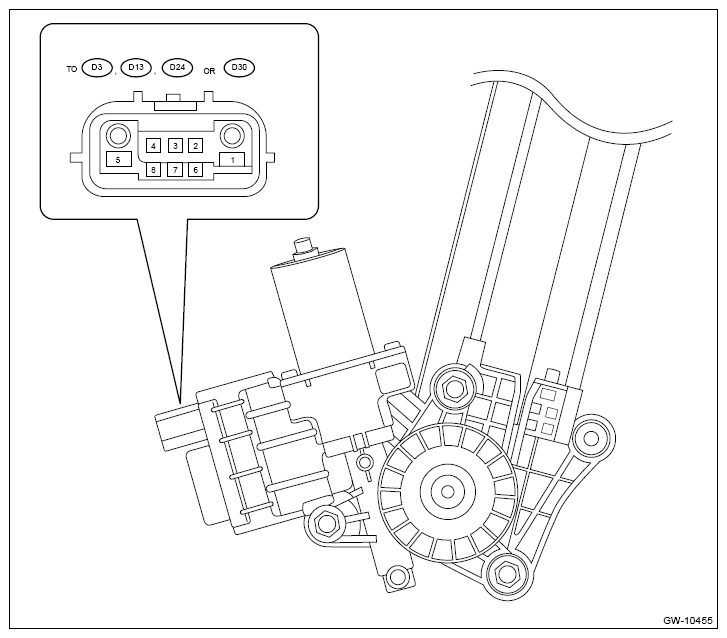

Front Regulator & Motor Assembly And Rear Regulator & Motor Assembly (Other Than Base Grade)

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Contents	Measuring condition	Standard
(D3), (D13), (D24) or (D30) No. 1 ↔ Chassis ground	GND	Always	Less than 1 Ω
(D3), (D13), (D24) or (D30) No. 2	-	-	-
(D3), (D13), (D24) or (D30) No. 3 ↔ Chassis ground	SW assembly PW SUB LED output (Except for driver's seat)	-	-
(D3), (D13), (D24) or (D30) No. 4	SW assembly PW AUTO operation input (Passenger's side only)	-	-
(D3), (D13), (D24) or (D30) No. 5 ↔ Chassis ground	Power supply for regulator	Always	Battery voltage
(D3), (D13), (D24) or (D30) No. 6 ↔ Chassis ground	SW assembly PW DOWN operation input	-	-
(D3), (D13), (D24) or (D30) No. 7	UP AND DOWN LIN signal input	-	-
(D3), (D13), (D24) or (D30) No. 8 ↔ Chassis ground	SW assembly PW UP operation input	-	-
