DTC P0030: A/F/O2 Heater Control Circuit Bank 1 Sensor 1: Notes

1. - DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

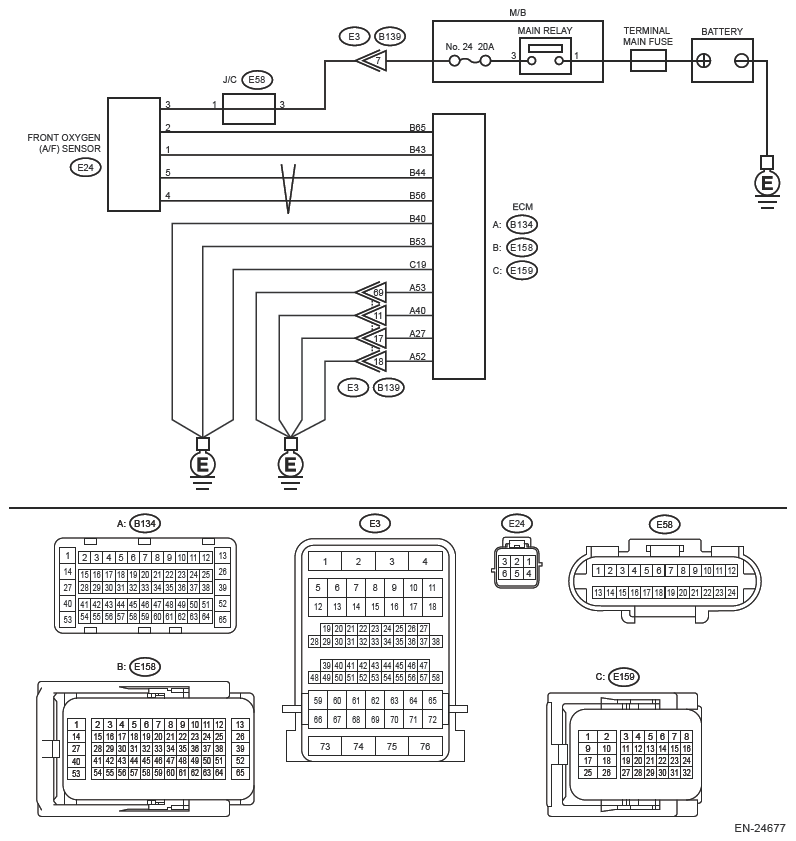

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>General Description>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Basic Diagnostic Procedure>PROCEDURE .

CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR (OPEN) .
1. Start and warm up the engine.
2. Turn the ignition switch to OFF.
3. Disconnect the connector from ECM.
4. Disconnect the connector from the front oxygen (A/F) sensor.
5. Measure the resistance of harness between ECM connector and front oxygen (A/F) sensor connector.
  Connector & terminal

  (E158) No. 43 - (E24) No. 1:

  (E158) No. 65 - (E24) No. 2:

  (E158) No. 56 - (E24) No. 4:

  (E158) No. 44 - (E24) No. 5:

  Is the resistance less than 1 Ω?

  Yes : Go to 2.

  No : Repair the open circuit of harness between ECM connector and front oxygen (A/F) sensor connector.
CHECK FRONT OXYGEN (A/F) SENSOR .
Check the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Front Oxygen (A/F) Sensor>INSPECTION .

Is the check result OK?

Yes : Go to 3.

No : Replace the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FRONT OXYGEN (A/F) SENSOR .
CHECK FOR POOR CONTACT .
Check for poor contact of ECM and front oxygen (A/F) sensor connector.

Is there poor contact of ECM or front oxygen (A/F) sensor connector?

Yes : Repair the poor contact of ECM or front oxygen (A/F) sensor connector.

No : Replace the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FRONT OXYGEN (A/F) SENSOR .
