DTC P0031: A/F/O2 Heater Control Circuit Low Bank 1 Sensor 1: Notes

1. - DTC detecting condition:

Immediately at fault recognition

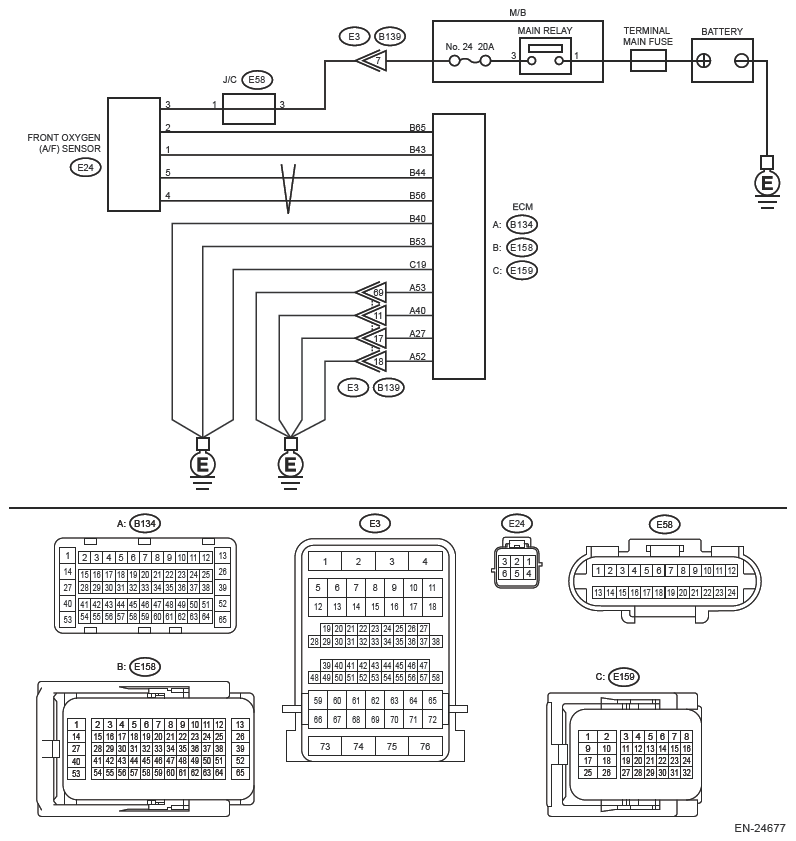

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>General Description>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>Basic Diagnostic Procedure>PROCEDURE .

CHECK POWER SUPPLY OF FRONT OXYGEN (A/F) SENSOR .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from the front oxygen (A/F) sensor.
3. Turn the ignition switch to ON.
4. Measure the voltage between front oxygen (A/F) sensor connector and engine ground.
  Connector & terminal

  (E24) No. 3 (+) - Engine ground (-):

  Is the voltage 10 V or more?

  Yes : Go to 2.

  No : Repair the following item.
  - Open circuit in harness between M/B and front oxygen (A/F) sensor connector
  - Poor contact of J/C
  - Poor contact of coupling connector
  - Blown out of fuse
CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance between ECM connector and front oxygen (A/F) sensor connector.
  Connector & terminal

  (E158) No. 65 - (E24) No. 2:

  Is the resistance less than 1 Ω?

  Yes : Go to 3.

  No : Repair the open circuit of harness between ECM connector and front oxygen (A/F) sensor connector.
CHECK GROUND CIRCUIT FOR ECM (OPEN CIRCUIT) .
Measure the resistance of harness between ECM connector and engine ground.

Connector & terminal

(B134) No. 27 - Engine ground:

(B134) No. 40 - Engine ground:

(B134) No. 52 - Engine ground:

(B134) No. 53 - Engine ground:

(E158) No. 40 - Engine ground:

(E158) No. 53 - Engine ground:

(E159) No. 19 - Engine ground:

Is the resistance less than 5 Ω?

Yes : Go to 4.

No : Repair the following item.
- Open circuit of harness between ECM connector and engine ground
- Poor contact of coupling connector
CHECK FRONT OXYGEN (A/F) SENSOR .
Check the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Front Oxygen (A/F) Sensor>INSPECTION .

Is the check result OK?

Yes : Repair the poor contact of ECM connector.

No : Replace the front oxygen (A/F) sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FRONT OXYGEN (A/F) SENSOR .
