Component Description

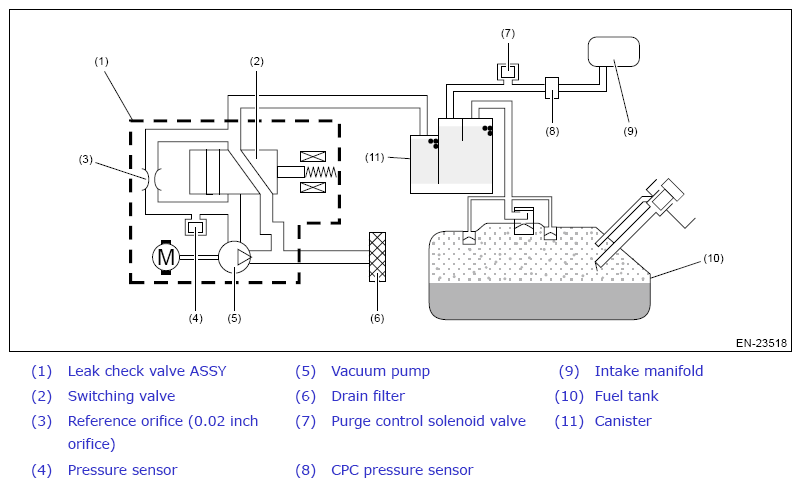

Leak check valve assembly consists of the pressure sensor, the reference orifice (diameter of 0.02 inch), the vacuum pump which introduces the negative pressure into evaporative emission system, and the switching valve which switches the passage to introduce the negative pressure.

G13866360Courtesy of SUBARU OF AMERICA, INC.
