Front ABS Wheel Speed Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the mud guard front. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>REMOVAL .
  4. Remove the sensor sub assembly front.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.
    1. Disconnect the sensor sub assembly front connector.
      • LH side

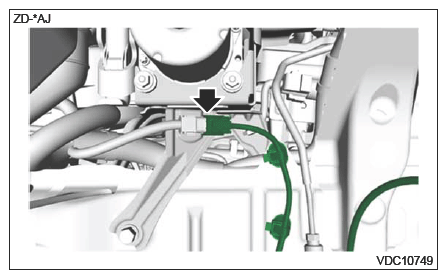

        G16525209Courtesy of SUBARU OF AMERICA, INC.
      • RH side

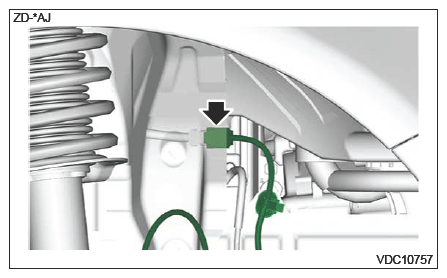

      G16525210Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolt and harness clip, and remove the sensor sub assembly front.

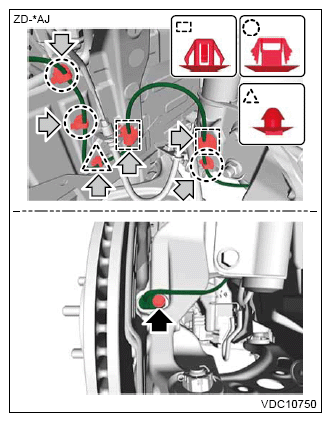

G16525211Courtesy of SUBARU OF AMERICA, INC.
