Fuel Pump Assembly: Specification
CAUTION:

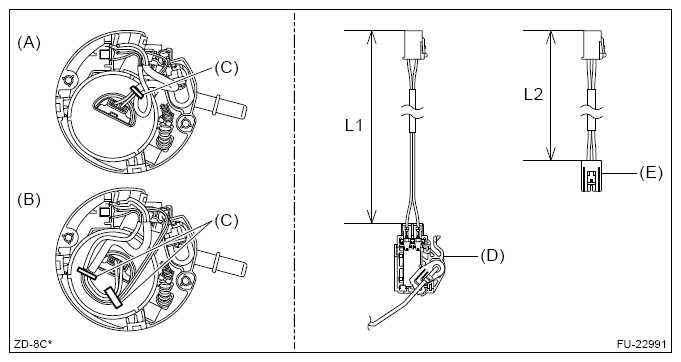

Harness routing differs depending on the type of fuel pump assembly. Be sure to install the fuel level sensor and connector cable that match the type.
- A-type
Fuel level sensor harness length: L1 Approx. 225 mm (8.86 in) Connector cable harness length: L2 Approx. 200 mm (7.87 in) - B-type
Fuel level sensor harness length: L1 Approx. 314 mm (12.36 in) Connector cable harness length: L2 Approx. 250 mm (9.84 in)
| (A) | A-type |
| (B) | B-type |
| (C) | Clip |
| (D) | Fuel level sensor |
| (E) | Connector cable |
