Component Description

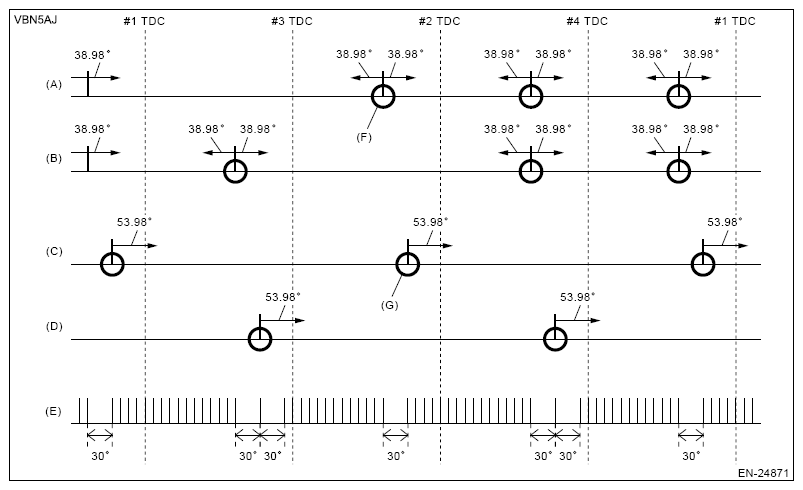

| (A) | Intake cam signal RH |
| (B) | Intake cam signal LH |
| (C) | Exhaust cam signal RH |
| (D) | Exhaust cam signal LH |
| (E) | Crankshaft signal |
| (F) | Intake camshaft position signal: When normal, there will be three intake camshaft position signals for every two crankshaft revolutions. |
| (G) | Exhaust camshaft position signal: When normal, there will be two exhaust camshaft position signals for every two crankshaft revolutions. |

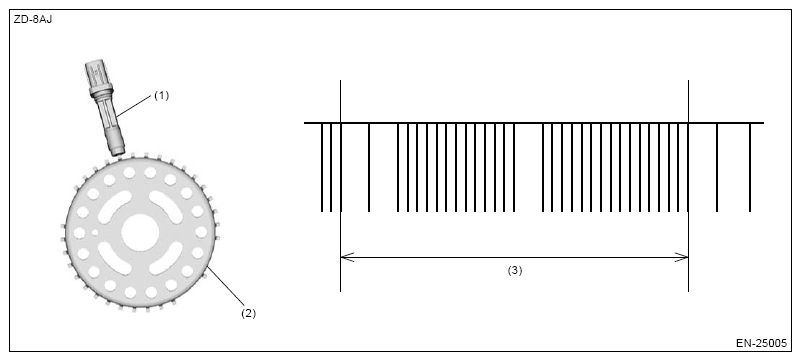

| (1) | Crankshaft position sensor |
| (2) | Crankshaft position sensor plate |
| (3) | 1 crankshaft rotation |
