Crankshaft Position Sensor

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Prepare an oscilloscope.

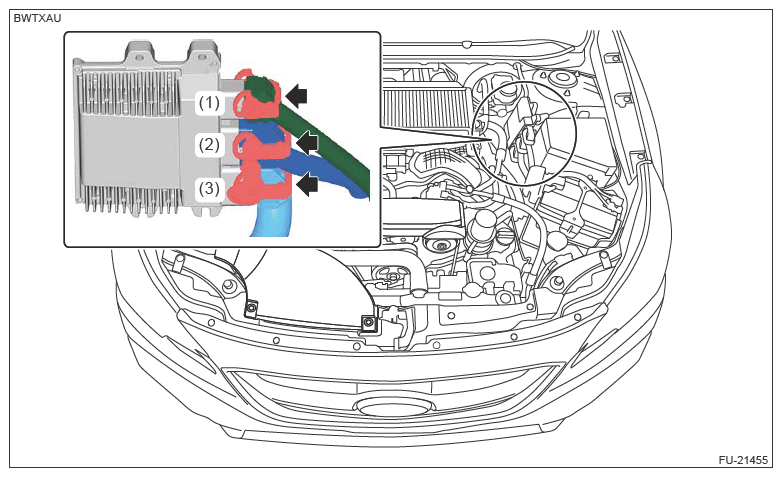

  3. Disconnect the connector from ECM in numerical order as shown in the figure.
    G13948369Courtesy of SUBARU OF AMERICA, INC.
  4. Attach the ST between the ECM, engine wiring harness and the bulkhead wiring harness. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

    Special tool:

    CHECK BOARD (18460AA150)

  5. Connect the probe to ST.
    G13948370Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Probe
    (E52) No. 14 +
    (B61) No. 40 -
  6. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  7. Start the engine and let it idle.
  8. Check the waveforms and voltage.
    NOTE:

    For waveform and voltage, refer to "Control Module (ECM) I/O Signal". Ref. to  ENGINE (DIAGNOSTICS) (H4DOTC)>CONTROL MODULE I/O SIGNAL>ELECTRICAL SPECIFICATION  .

  9. After inspection, install the related parts in the reverse order of removal.
NOTE:

For installation procedures of ECM connectors, refer to Engine Control Module (ECM). Ref. to  FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE CONTROL MODULE (ECM)>INSTALLATION  .
