Select Cable: Installation

CAUTION:

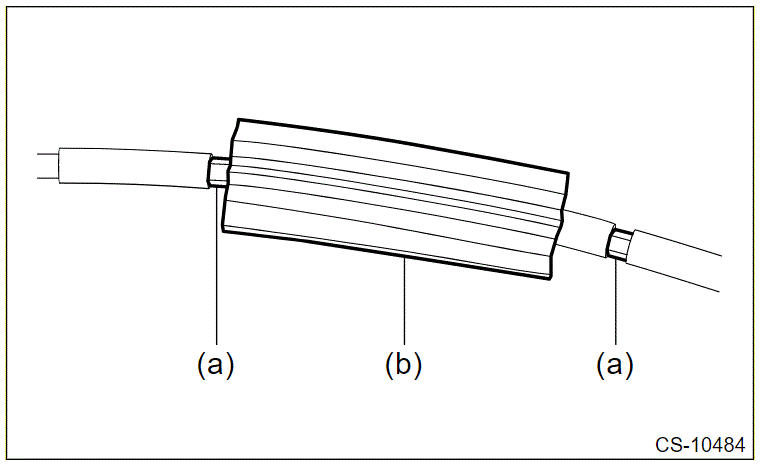

If the protector (b) is offset, set it between the clamps (a).

Courtesy of SUBARU OF AMERICA, INC.

Install the cable plate.
CAUTION:
Be careful not to twist the boot.

Tightening torque:

18 N.m (1.8 kgf.m, 13.3 ft.lb)

Courtesy of SUBARU OF AMERICA, INC.
Set a new clamp on the select lever and secure it by bending the claw.
NOTE: Install it with the claw facing the rear side.
Insert the select cable into the select lever and secure it with the clamp.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Temporarily Install the adjusting nut (rear) to the select cable.

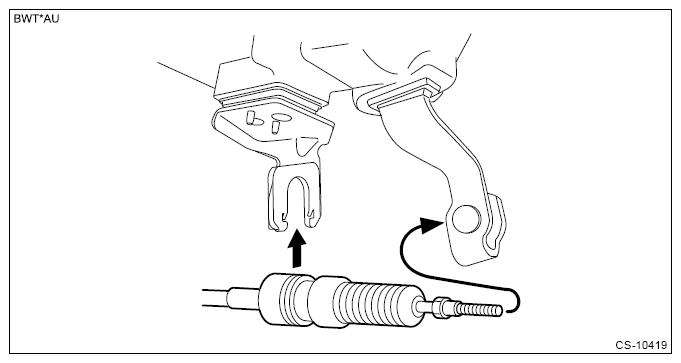

Connect the select cable to the transmission main body.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Set the washer before installing the snap pin.

Tightening torque:

25 N.m (2.5 kgf.m, 18.4 ft.lb)

Courtesy of SUBARU OF AMERICA, INC.
Adjust the select cable free play Ref. to CONTROL SYSTEMS>SELECT CABLE>ADJUSTMENT .
Install the center exhaust cover.
H4DO model:

Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>INSTALLATION .

H4DOTC model:

Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>INSTALLATION .
Release the shift lock and shift the select lever to the "P range". Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
