Keyless Access Control Module: Removal

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the pocket COMPL and the panel instrument passenger. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL>BACK PANEL

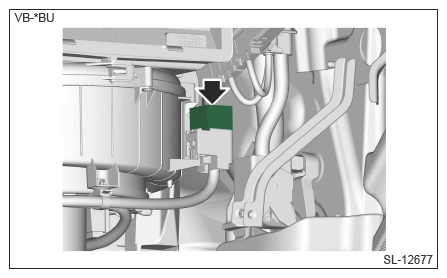

Remove the blower motor relay.

Courtesy of SUBARU OF AMERICA, INC.

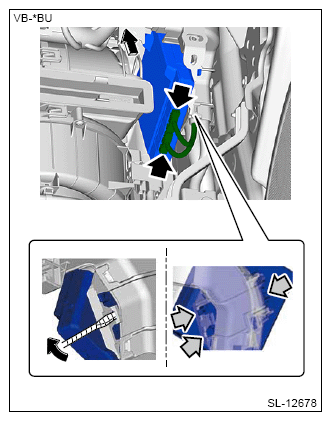

Remove the keyless access control module.

CAUTION:

Be careful to keep water and other foreign materials away from the keyless access control module terminals.

Disconnect the connector.
Release the claws using a flat tip screwdriver or similar tool wrapped with protection tape.

Release the guides and remove the keyless access control module.

Courtesy of SUBARU OF AMERICA, INC.
