Brake Control (Diagnostics): Electrical Component Location: Location

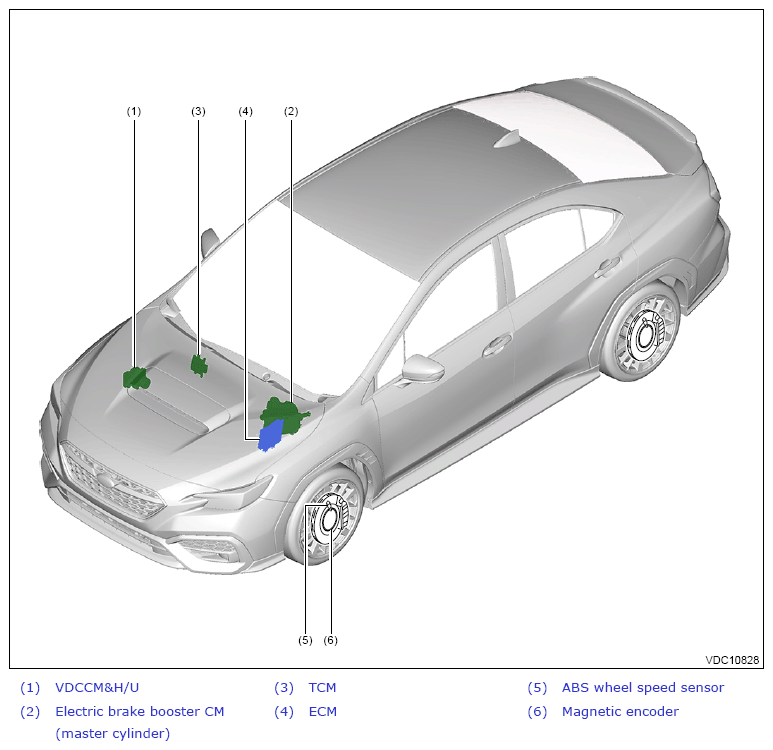

G14614727Courtesy of SUBARU OF AMERICA, INC.

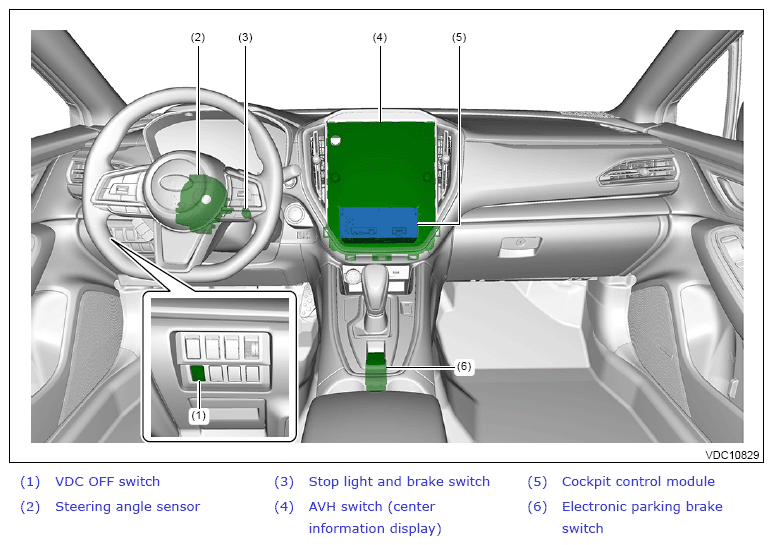

G14614728Courtesy of SUBARU OF AMERICA, INC.
G14614729Courtesy of SUBARU OF AMERICA, INC.
