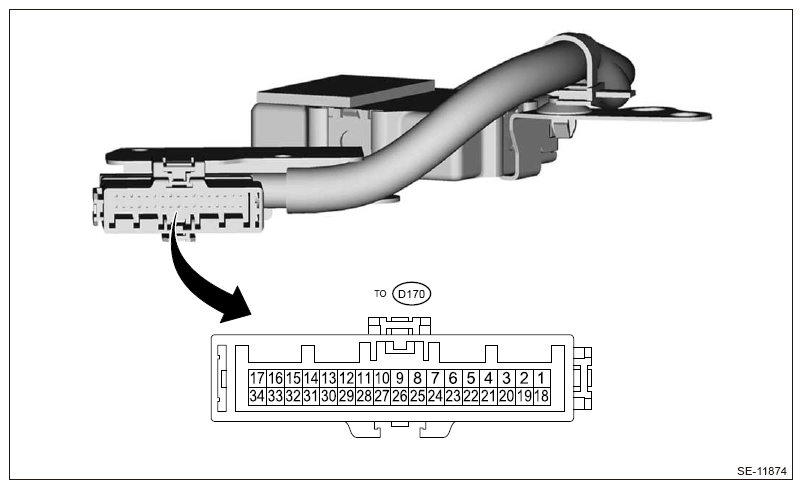

Outer Mirror Control Module LH
| Terminal No. | Contents | Measuring condition | Standard | Note |
|---|---|---|---|---|
| (D170) No. 1 ←→ Chassis ground | - | - | - | - |
| (D170) No. 2 ←→ Chassis ground | Memory sensor power supply | Always | 5.0 V | - |
| (D170) No. 3 ←→ Chassis ground | Memory sensor input (horizontal) | Always | 0 -5.0 V | Changes when the left side mirror surface is operated in the left/right direction Right direction (inward): 0 V - Left direction (outward): 5.0 V |
| (D170) No. 4 ←→ Chassis ground | Memory sensor input (vertical) | Always | 0 -5.0 V | Changes when the mirror surface is operated in the up/down direction Up direction: 0 V - Down direction: 5.0 V |
| (D170) No. 5 ←→ Chassis ground | SET SW input | Switch ON | 1.6 V or less | - |
| Switch OFF | 10 kΩ or more | - | ||
| (D170) No. 6 ←→ Chassis ground | Memory 1 SW input | Switch ON | 1.6 V or less | - |
| Switch OFF | 10 kΩ or more | - | ||
| (D170) No. 7 ←→ Chassis ground | Memory 2 SW input | Switch ON | 1.6 V or less | - |
| Switch OFF | 10 kΩ or more | - | ||
| (D170) No. 8 ←→ Chassis ground | GND | Always | 1 Ω or less | - |
| (D170) No. 9 ←→ Chassis ground | Electric retraction SW input (OPR) | During the extension operation by the electric retraction system | 3.3 V or more | - |
| During the retracting operation by the electric retraction system | 10 kΩ or more | - | ||
| (D170) No. 10 ←→ Chassis ground | Remote control mirror SW power supply | When the electric retraction system and mirror surface are operated | 9.0 - 16 V | - |
| (D170) No. 11 ←→ Chassis ground | CAN communication Hi | - | Cannot be measured | - |
| (D170) No. 12 ←→ Chassis ground | CAN communication Low | - | Cannot be measured | - |
| (D170) No. 13 ←→ Chassis ground | - | - | - | - |
| (D170) No. 14 ←→ Chassis ground | Mirror surface motor output (vertical) | When the mirror surface is operated (up) | 1.0 V or less | - |
| When the mirror surface is operated (down) | (+B voltage) -0.6 V or more | - | ||
| When the mirror surface is operated (right) | 10 kΩ or more | - | ||
| When the mirror surface is operated (left) | 10 kΩ or more | - | ||
| (D170) No. 15 ←→ Chassis ground | Mirror surface motor output (horizontal) | When the mirror surface is operated (up) | 10 kΩ or more | - |
| When the mirror surface is operated (down) | 10 kΩ or more | - | ||
| When the mirror surface is operated (right) | 1.0 V or less | - | ||
| When the mirror surface is operated (left) | (+B voltage) -0.6 V or more | - | ||
| (D170) No. 16 ←→ Chassis ground | Mirror surface motor output (common) | When the mirror surface is operated (up) | (+B voltage) -0.6 V or more | - |
| When the mirror surface is operated (down) | 1.0 V or less | - | ||
| When the mirror surface is operated (right) | (+B voltage) -0.6 V or more | - | ||
| When the mirror surface is operated (left) | 1.0 V or less | - | ||
| (D170) No. 17 ←→ Chassis ground | - | - | - | - |
| (D170) No. 18 ←→ Chassis ground | - | - | - | - |
| (D170) No. 19 ←→ Chassis ground | Remote control mirror SW MCL input (L side) | When the mirror surface is operated (up) | 3.7 V or more | Common to both the right and left mirror operation |
| When the mirror surface is operated (down) | 1.6 V or less | Common to both the right and left mirror operation | ||
| When the mirror surface is operated (right) | 3.7 V or more | Common to both the right and left mirror operation | ||
| When the mirror surface is operated (left) | 1.6 V or less | Common to both the right and left mirror operation | ||
| (D170) No. 20 ←→ Chassis ground | Remote control mirror SW MAR input (R side) | When the mirror surface is operated (up) | 10 kΩ or more | Only when the right mirror is operated |
| When the mirror surface is operated (down) | 10 kΩ or more | Only when the right mirror is operated | ||
| When the mirror surface is operated (right) | 1.6 V or less | Only when the right mirror is operated | ||
| When the mirror surface is operated (left) | 3.7 V or more | Only when the right mirror is operated | ||
| (D170) No. 21 ←→ Chassis ground | Remote control mirror SW MBR input (R side) | When the mirror surface is operated (up) | 1.6 V or less | Only when the right mirror is operated |
| When the mirror surface is operated (down) | 3.7 V or more | Only when the right mirror is operated | ||
| When the mirror surface is operated (right) | 10 kΩ or more | Only when the right mirror is operated | ||
| When the mirror surface is operated (left) | 10 kΩ or more | Only when the right mirror is operated | ||
| (D170) No. 22 ←→ Chassis ground | Remote control mirror SW MAL input (L side) | When the mirror surface is operated (up) | 10 kΩ or more | Only when the left mirror is operated |
| When the mirror surface is operated (down) | 10 kΩ or more | Only when the left mirror is operated | ||
| When the mirror surface is operated (right) | 1.6 V or less | Only when the left mirror is operated | ||
| When the mirror surface is operated (left) | 3.7 V or more | Only when the left mirror is operated | ||
| (D170) No. 23 ←→ Chassis ground | Remote control mirror SW MBL input (L side) | When the mirror surface is operated (up) | 1.6 V or less | Only when the left mirror is operated |
| When the mirror surface is operated (down) | 3.7 V or more | Only when the left mirror is operated | ||
| When the mirror surface is operated (right) | 10 kΩ or more | Only when the left mirror is operated | ||
| When the mirror surface is operated (left) | 10 kΩ or more | Only when the left mirror is operated | ||
| (D170) No. 24 ←→ Chassis ground | Memory sensor GND | Always | 1 Ω or less | - |
| (D170) No. 25 ←→ Chassis ground | ECM power supply | Always | 9.0 - 16 V | - |
| (D170) No. 26 ←→ Chassis ground | Remote control mirror SW GND | Always | 10 kΩ or more | - |
| (D170) No. 27 ←→ Chassis ground | Electric retraction SW input (CLR) | During the extension operation by the electric retraction system | 10 kΩ or more | - |
| During the retracting operation by the electric retraction system | 3.3 V or more | - | ||
| (D170) No. 28 ←→ Chassis ground | IGN SW input | IG ON | 9.0 - 16 V | - |
| (D170) No. 29 ←→ Chassis ground | ACC SW input | ACC ON | 9.0 - 16 V | - |
| (D170) No. 30 ←→ Chassis ground | Electric retraction SW illumination output | Night illumination ON | (+B voltage) -0.3 V or more | - |
| (D170) No. 31 ←→ Chassis ground | Heater output | Defogger ON | (+B voltage) -0.8 V or more | - |
| (D170) No. 32 ←→ Chassis ground | Electric retraction motor output (-) | During the extension operation by the electric retraction system | (+B voltage) -1.1 V or more | - |
| During the retracting operation by the electric retraction system | 0.9 V or less | - | ||
| (D170) No. 33 ←→ Chassis ground | Electric retraction motor output (+) | During the extension operation by the electric retraction system | 0.9 V or less | - |
| During the retracting operation by the electric retraction system | (+B voltage) -1.1 V or more | - | ||
| (D170) No. 34 ←→ Chassis ground | - | - | - | - |
